System Diagrams — 2017 Toyota Tacoma TRD Pro, Automatic Trans Service Manual ~ LEMON Manuals

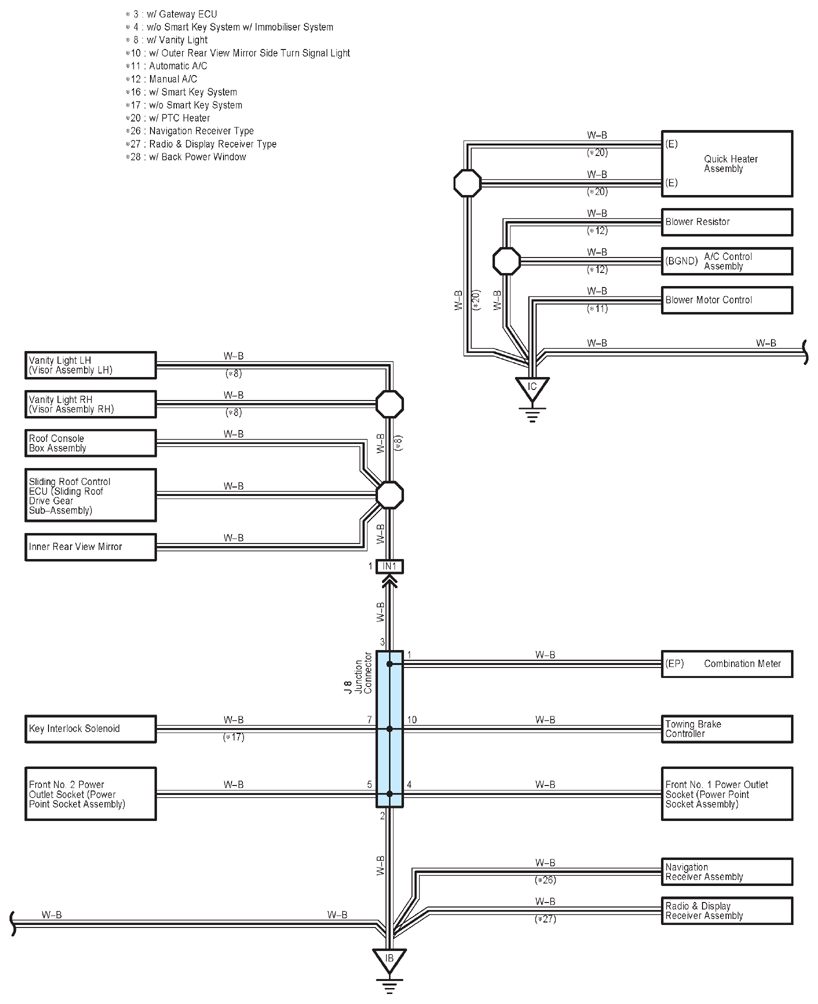

Fig 1: Ground Point (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

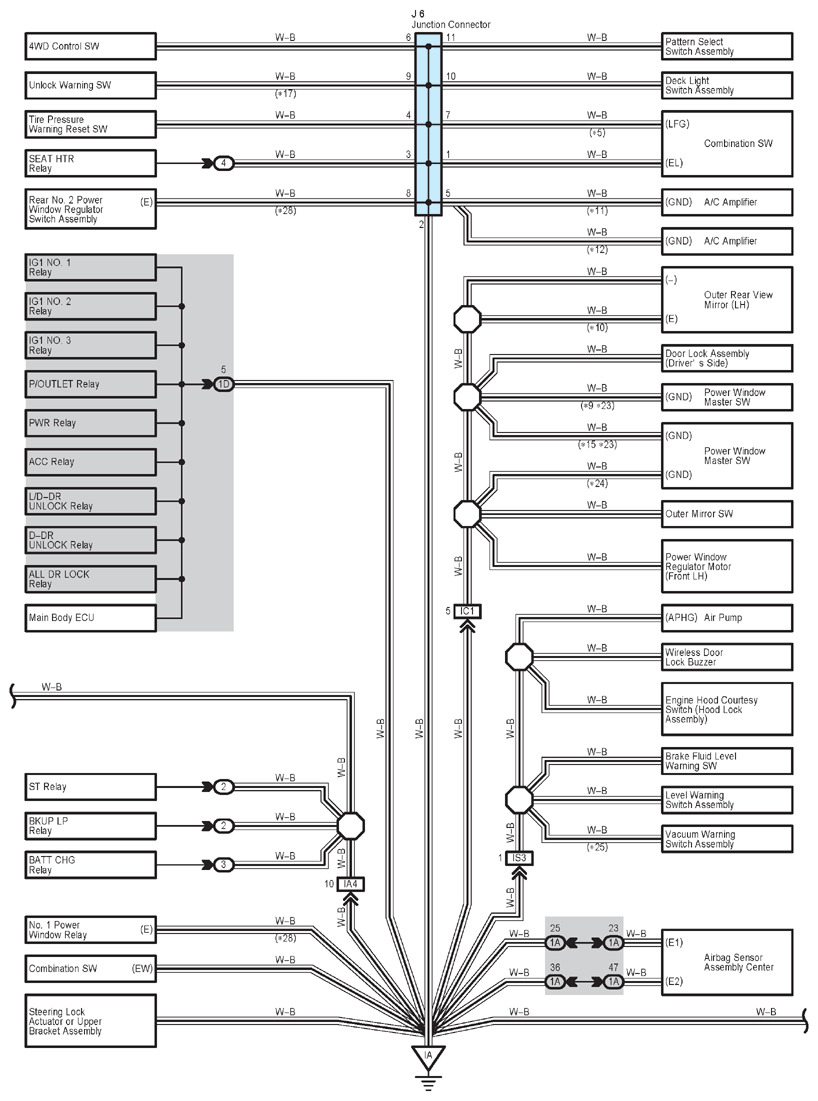

Fig 2: Ground Point (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

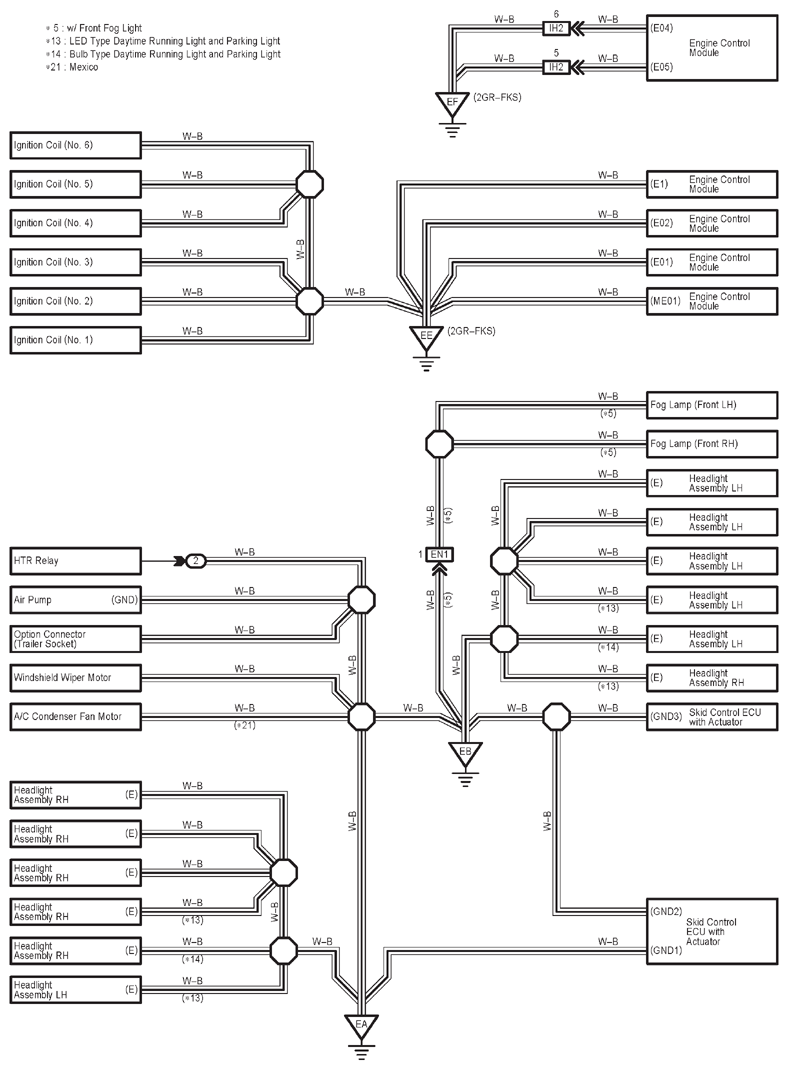

Fig 3: Ground Point (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

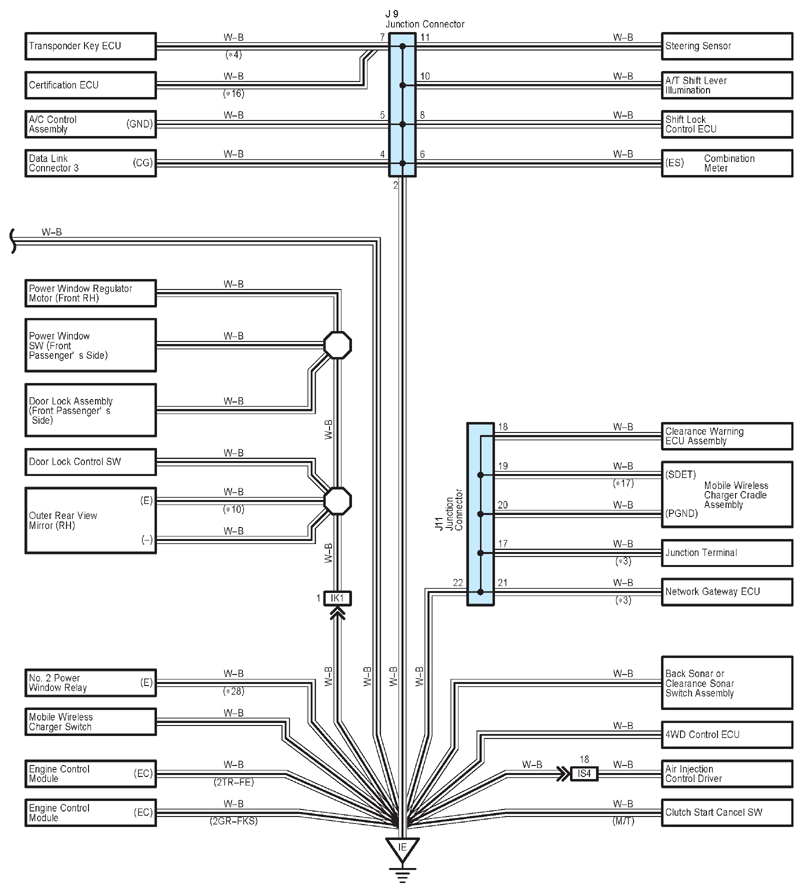

Fig 4: Ground Point (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

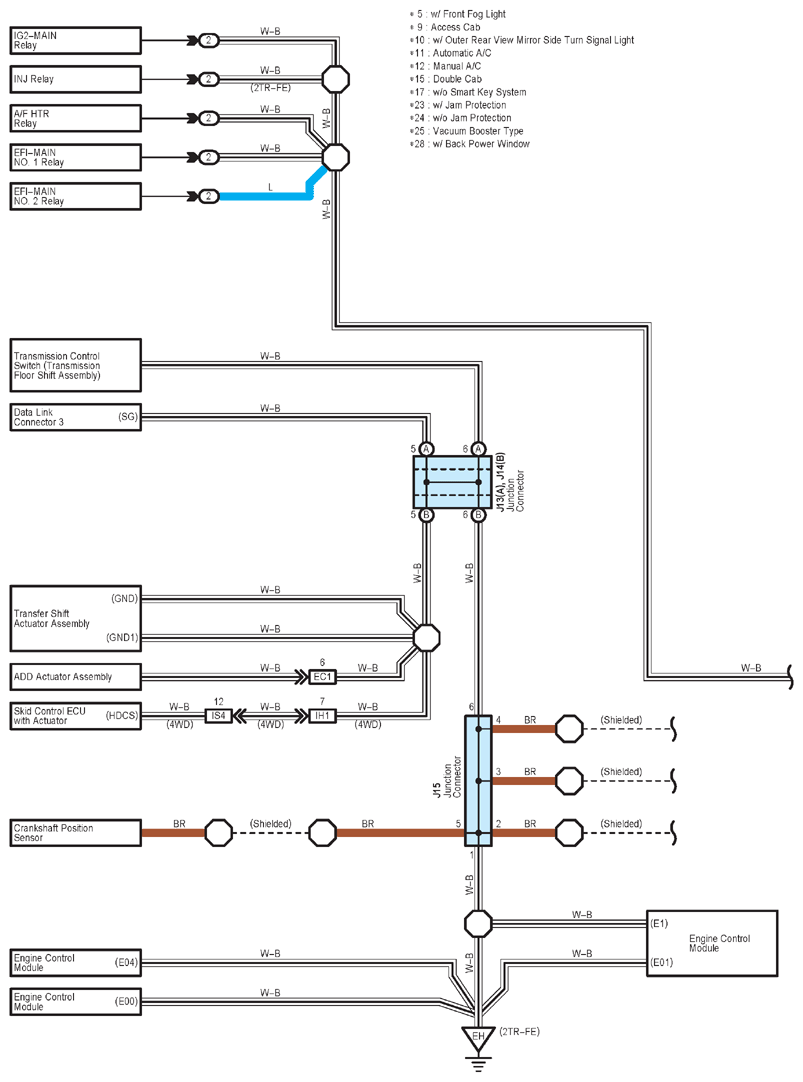

Fig 5: Ground Point (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

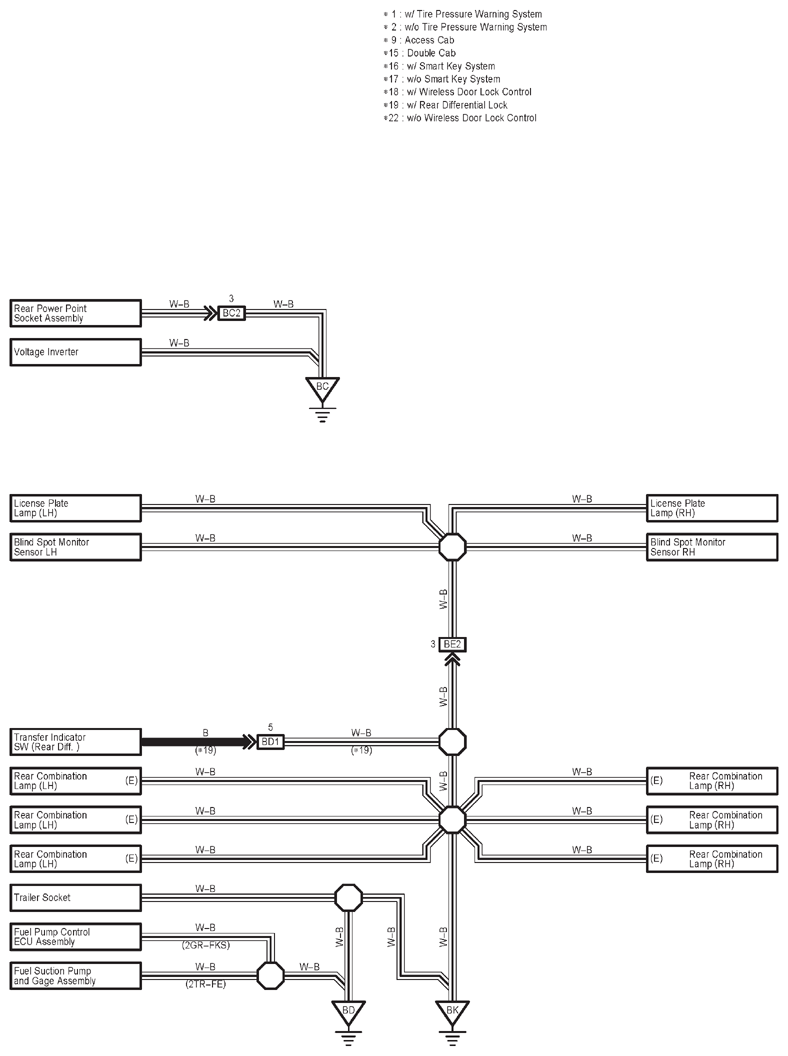

Fig 6: Ground Point (6 Of 8)

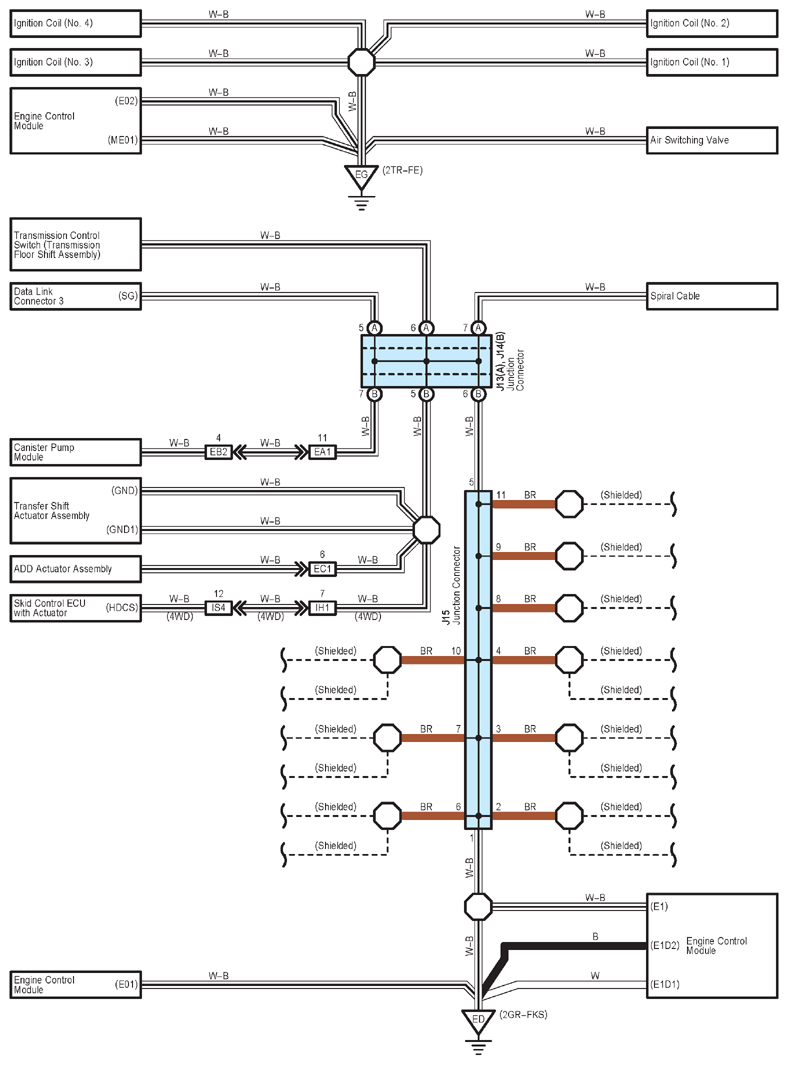

Fig 7: Ground Point (7 Of 8)

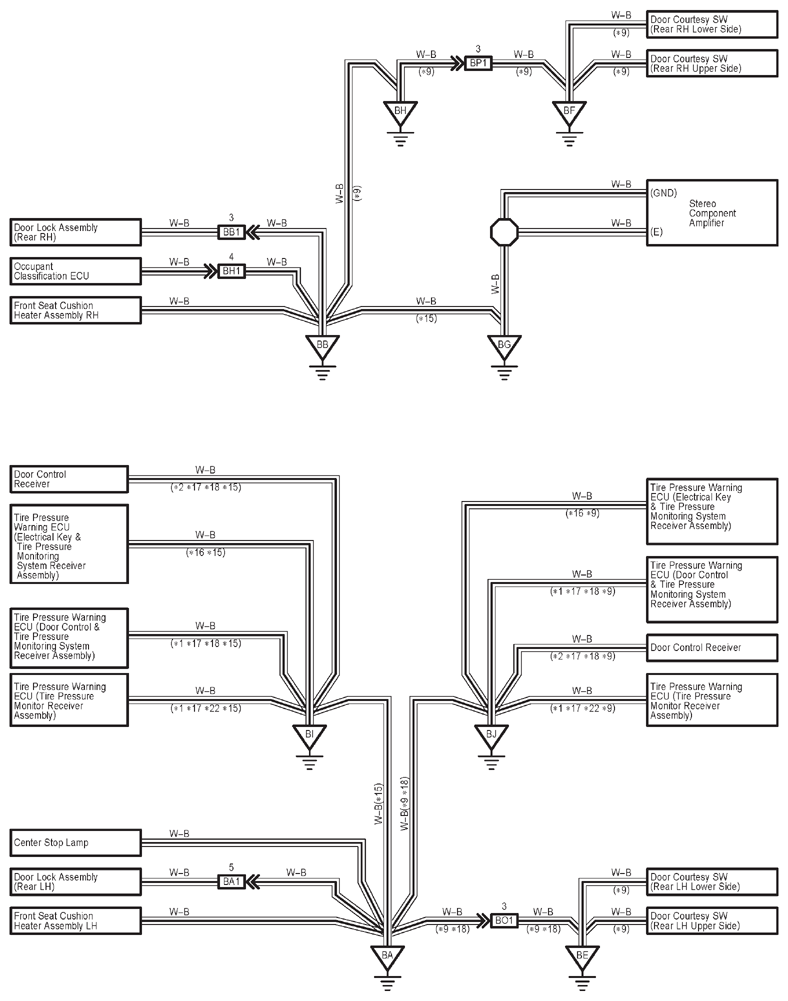

Fig 8: Ground Point (8 Of 8)
