Removal [08/2015 - ]: Procedure

  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    (Refer to REMOVAL [08/2015 - 11/2017] , or refer to REMOVAL [11/2017 - ] )

  2. REMOVE VVT SENSOR (for Intake Side of Bank 1)
    1. Disconnect the connector from the VVT sensor.

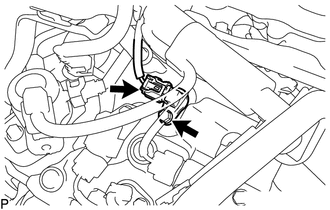

      GTY539980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor from the cylinder head cover sub-assembly.
  3. REMOVE VVT SENSOR (for Exhaust Side of Bank 1)
    1. Disconnect the connector from the VVT sensor.

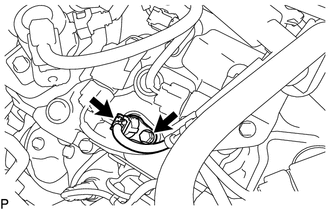

      GTY539984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor from the cylinder head cover sub-assembly.
  4. REMOVE VVT SENSOR (for Intake Side of Bank 2)
    1. Disconnect the connector from the VVT sensor.

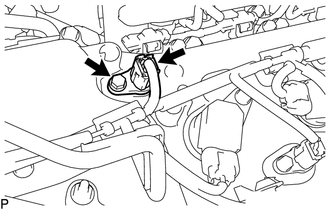

      GTY589670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor from the cylinder head cover sub-assembly LH.
  5. REMOVE VVT SENSOR (for Exhaust Side of Bank 2)
    1. Disconnect the connector from the VVT sensor.

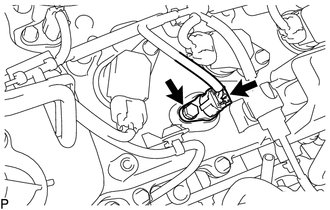

      GTY589669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor from the cylinder head cover sub-assembly LH.
