VC Output Circuit [08/2015 - 11/2017]: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
- For the circuit diagram of the ECM power source refer to the ECM power source circuit (Refer to ECM Power Source Circuit [08/2015 - 11/2017] ).

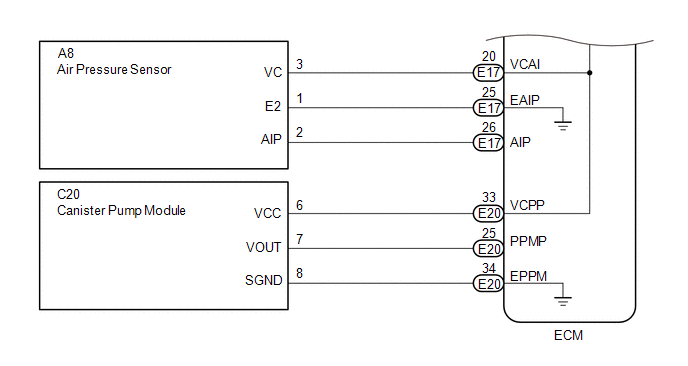

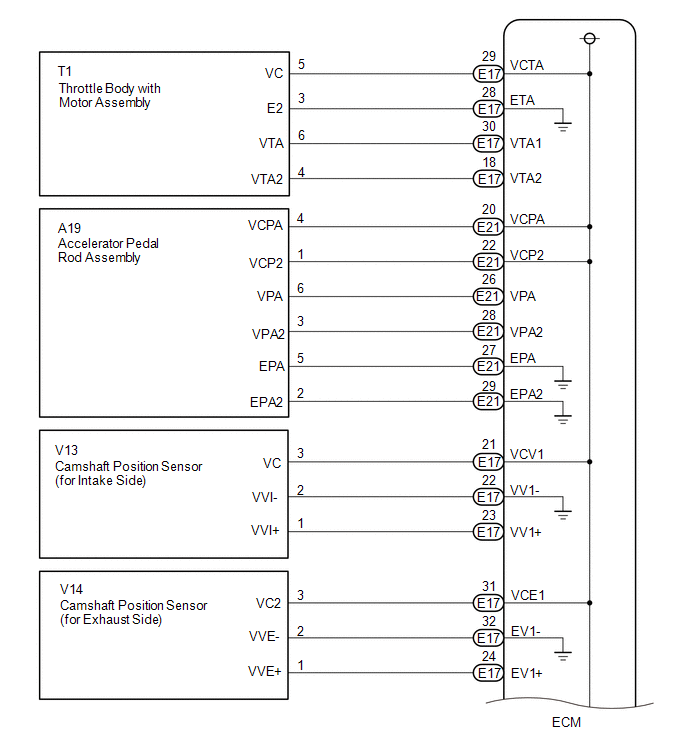

- VC output circuit
