VC Output Circuit [11/2017 - ]: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
- For the circuit diagram of the ECM power source refer to the ECM power source circuit (Refer to ECM Power Source Circuit [11/2017 - ] ).

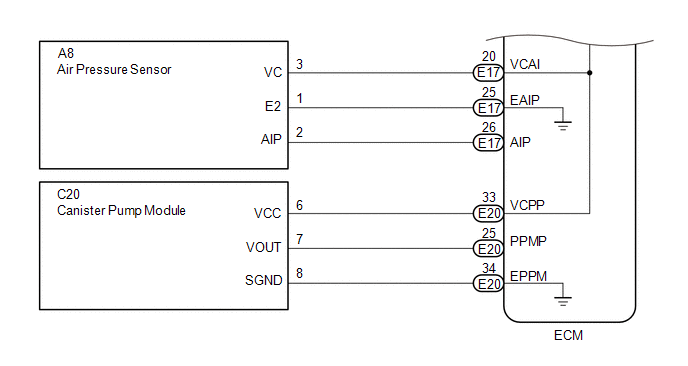

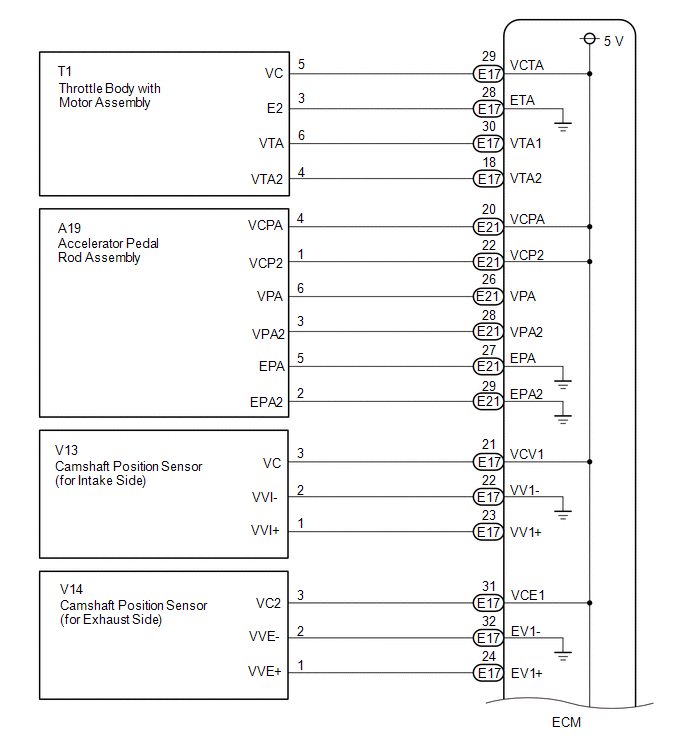

- VC output circuit
