Components [08/2015 - 09/2019]
WARNING:
This page is about a different variant/trim than selected.

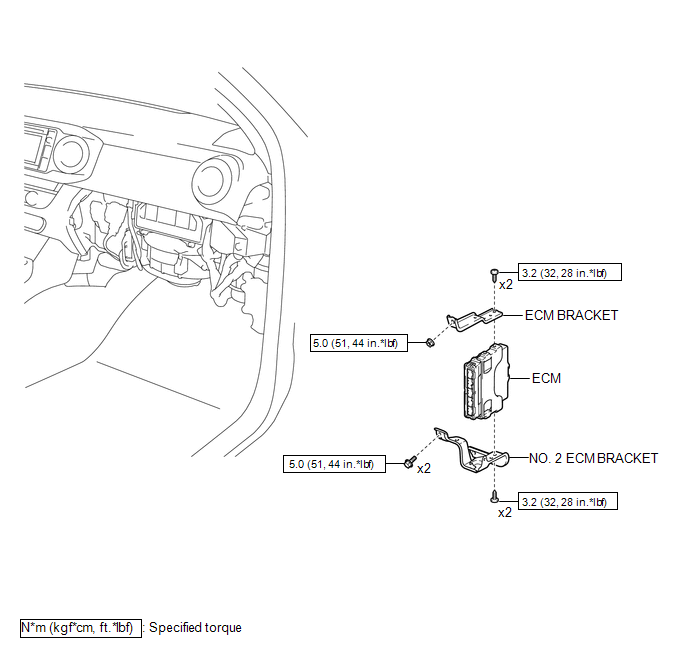

Fig 1: ECM Replacement Components With Torque Specifications [08/2015 - 09/2019] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: ECM Replacement Components With Torque Specifications [08/2015 - 09/2019] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
