Components [09/2019 - ]

WARNING: This page is about a different variant/trim than selected.
Fig 1: ECM Replacement Components With Torque Specifications [09/2019 - ] (1 Of 2)
GTY707760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

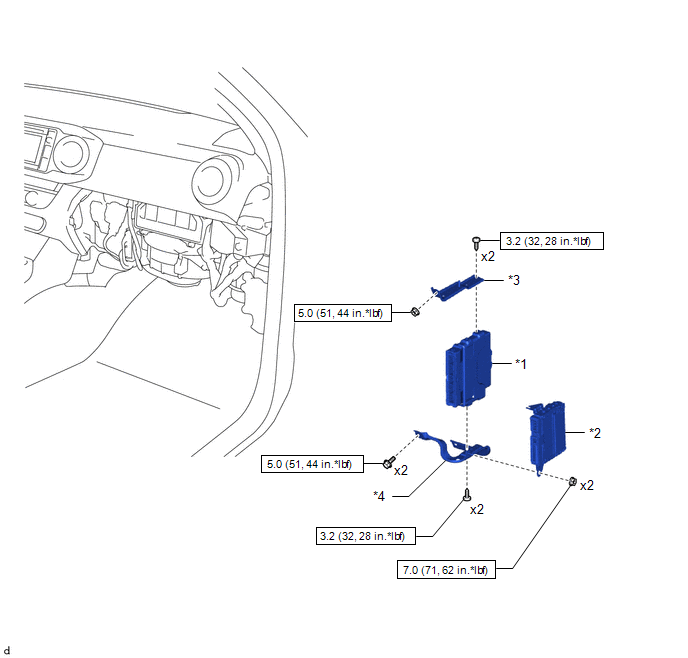

Fig 2: ECM Replacement Components With Torque Specifications [09/2019 - ] (2 Of 2)
GTY938862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ECM *2 DCM (TELEMATICS TRANSCEIVER) WITH BRACKET
*3 ECM BRACKET *4 NO. 2 ECM BRACKET
N*m (kgf*cm, ft.*lbf): Specified torque - -
