Components [08/2015 - ]

WARNING: This page is about a different variant/trim than selected.
Fig 1: Knock Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY711304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

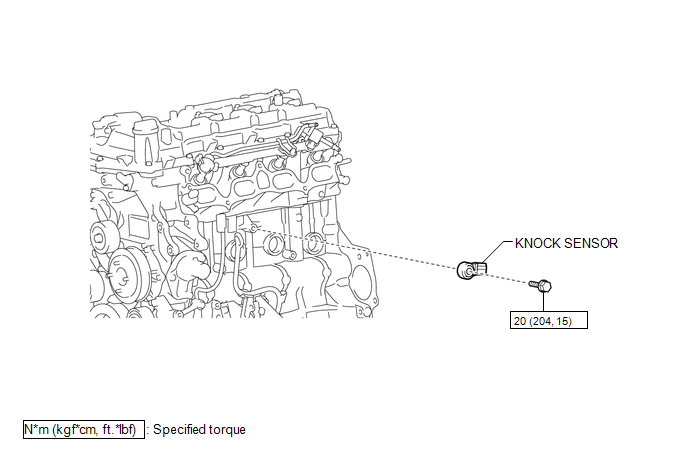

Fig 2: Knock Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY687386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
