Installation [08/2015 - 11/2017]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL KNOCK SENSOR

    HINT:

    Perform "Inspection After Repair" after replacing the knock sensor (Refer to INITIALIZATION [08/2015 - 11/2017] ).

    1. Install the knock sensor to the cylinder block sub-assembly with the bolt.

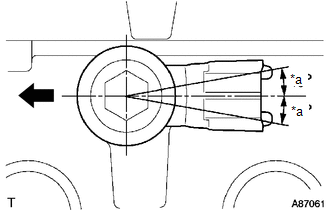

      GTY701937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a 10°
      Front of Vehicle

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

      NOTE:

      Make sure that the knock sensor is at the correct angle when installing.

    2. Connect the knock sensor connector.
  2. INSTALL INTAKE MANIFOLD
    1. Install the No. 1 intake manifold insulator to the intake manifold.

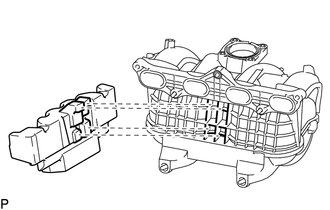

      GTY600028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Insert the protrusions of the No. 1 intake manifold insulator into the grille of the intake manifold.
      • Insert the No. 1 intake manifold insulator until the position of the line as shown in the illustration.

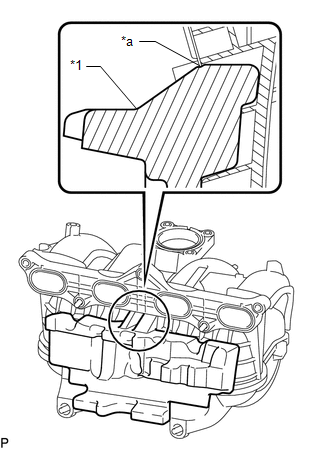

        GTY694486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *1 No. 1 Intake Manifold Insulator
        *a Line
    2. Install a new gasket to the intake manifold.

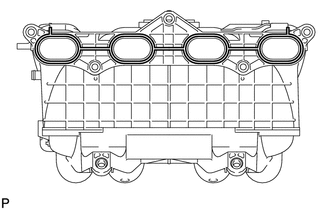

      GTY573634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the intake manifold with the 5 bolts and 2 nuts.

      Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

    4. Install the 2 No. 2 intake manifold insulators to the intake manifold.
    5. Install the heater hose bracket to the intake manifold with the bolt.

      Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

    6. Connect the vacuum hose and slide the hose clip to secure it.
    7. Connect the No. 3 ventilation hose and slide the hose clip to secure it.
    8. Install the No. 2 water by-pass hose.
    9. Engage the 2 clamps to install the wire harness.
  3. INSTALL PURGE VSV
    1. Install the purge VSV to the intake manifold with the 2 bolts.

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

    2. Connect the No. 2 fuel vapor feed hose and slide the hose clip to secure it.
    3. Connect the No. 1 fuel vapor feed hose and slide the hose clip to secure it.
    4. Engage the clamp to install the wire harness.
    5. Connect the purge VSV connector.
  4. CONNECT NO. 2 FUEL HOSE
    1. Install the No. 2 fuel hose to the fuel pipe clamp.
    2. Connect the No. 2 fuel hose (Refer to PRECAUTION [08/2015 - 11/2017] ).
  5. CONNECT FUEL HOSE
    1. Install the fuel hose to the fuel pipe clamp.
    2. Connect the fuel hose (Refer to PRECAUTION [08/2015 - 11/2017] ).
  6. INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY

    (Refer to INSTALLATION [08/2015 - 11/2017] )

  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  8. INSPECT FOR FUEL LEAK

    Refer to PROCEDURE - Step 8
