Vehicle Identification And Serial Numbers [08/2015 - 11/2017]

VEHICLE IDENTIFICATION NUMBER

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

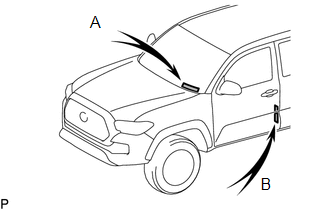

1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in the illustration.
  A

  Vehicle Identification Number

  B

  Certification Label

ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER

The engine serial number is stamped on the cylinder block of the engine and the transmission serial number is stamped on the housing as shown in the illustration.

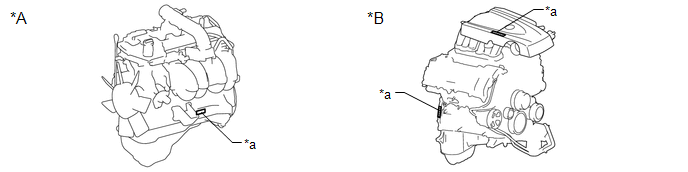

Engine Serial Number

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*A	2TR-FE	*B	2GR-FKS
*a	Engine Serial Number	-	-

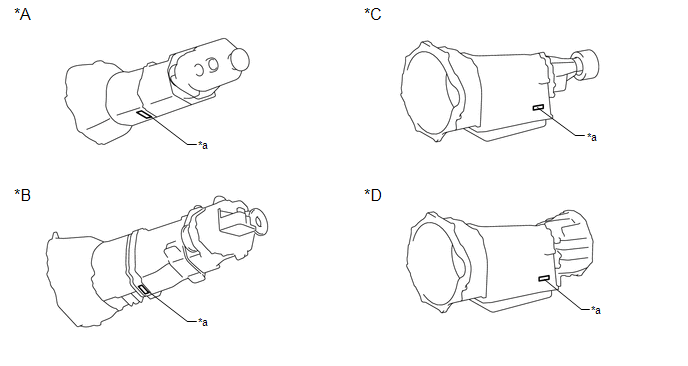

Transmission Serial Number

TEXT IN ILLUSTRATION

*A	R156F	*B	RC62F
*C	AC60E	*D	AC60F
*a	Transmission Serial Number	-	-
