System Diagrams

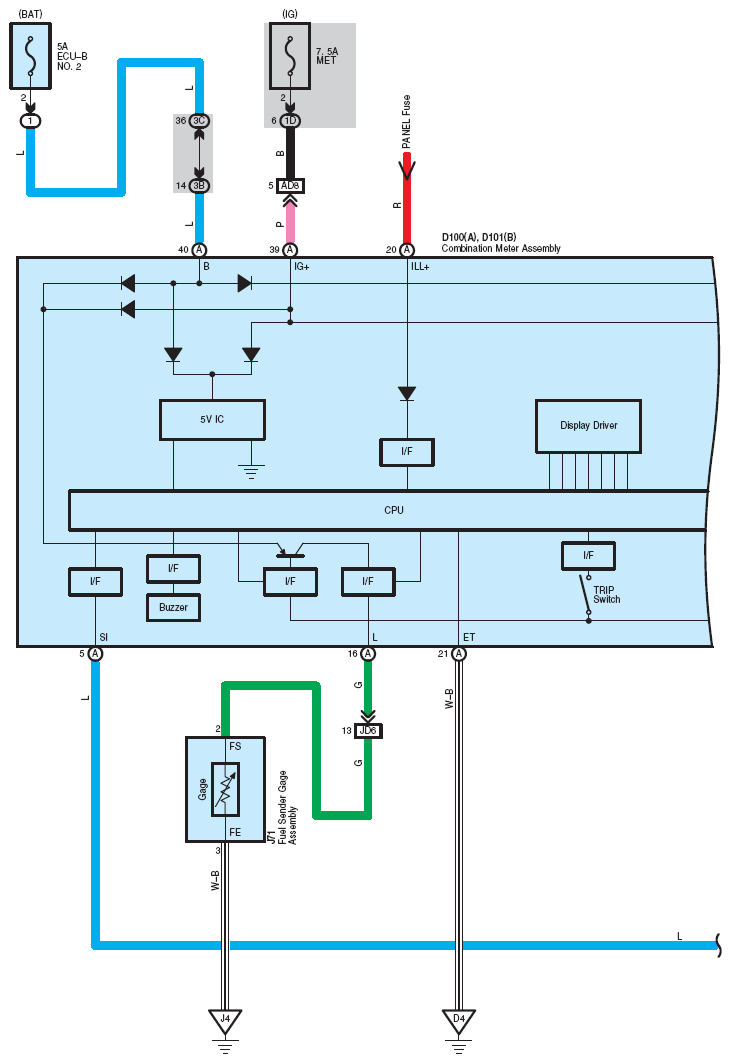

Fig 1: Combination Meter - Hatchback (1 Of 10)

G12219910

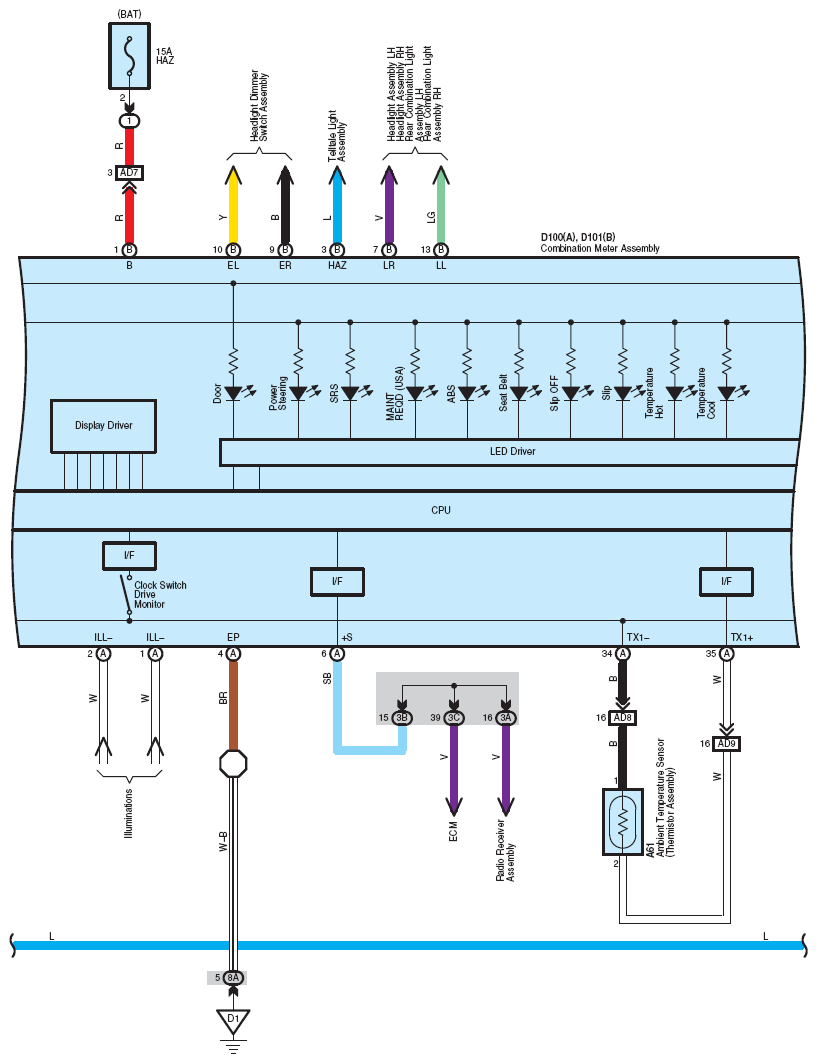

Fig 2: Combination Meter - Hatchback (2 Of 10)

G12219911

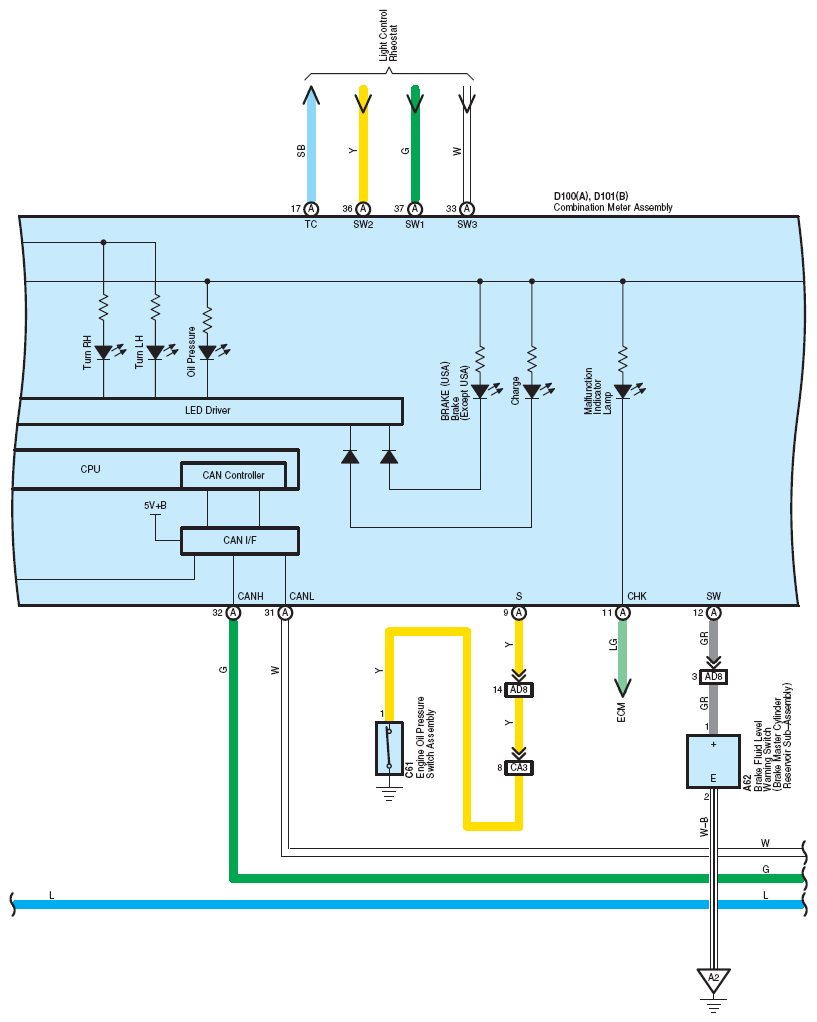

Fig 3: Combination Meter - Hatchback (3 Of 10)

G12219912

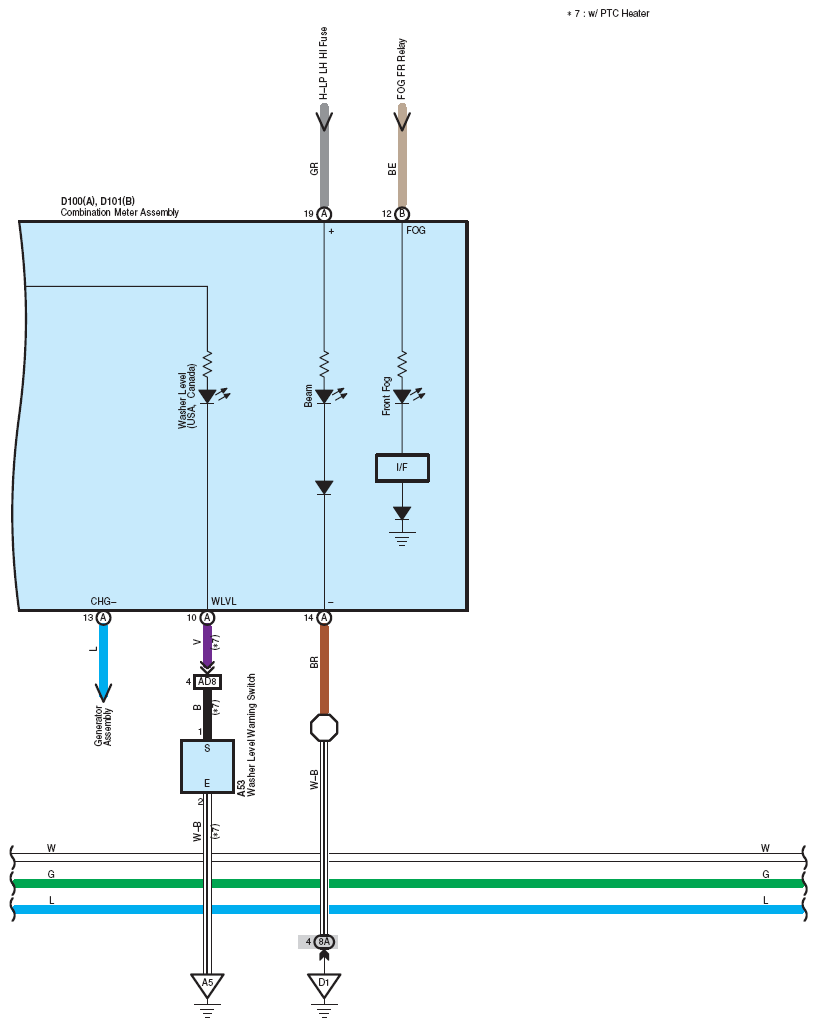

Fig 4: Combination Meter - Hatchback (4 Of 10)

G12219913

Fig 5: Combination Meter - Hatchback (5 Of 10)

G12219914

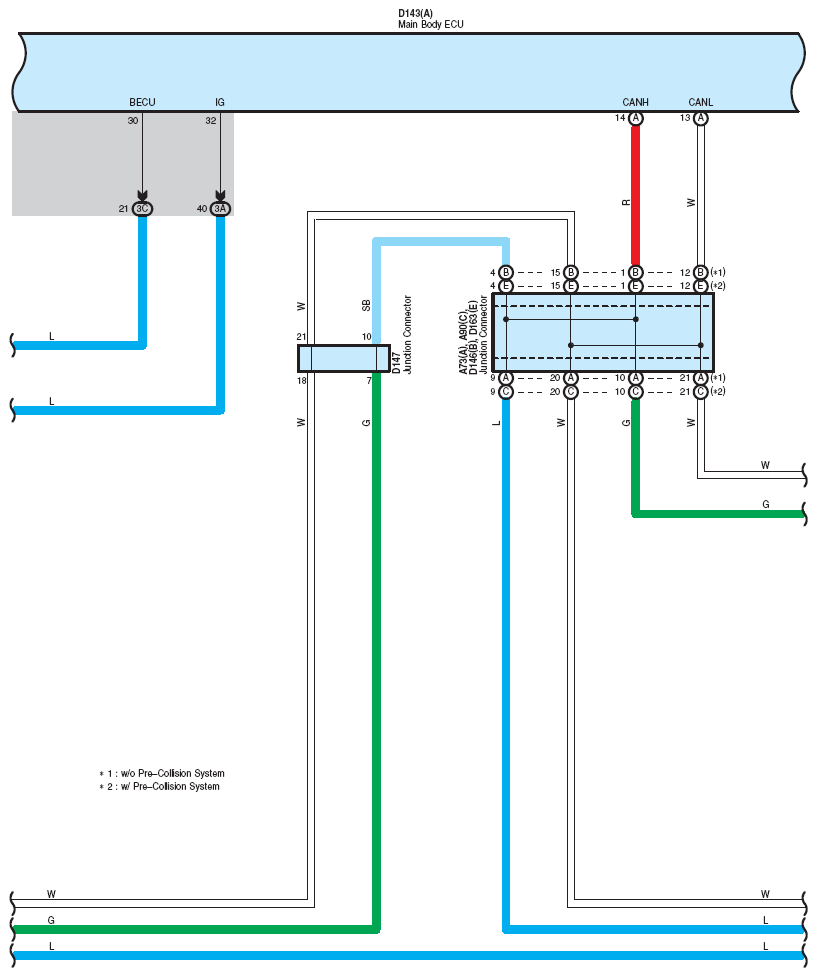

Fig 6: Combination Meter - Hatchback (6 Of 10)

G12219915

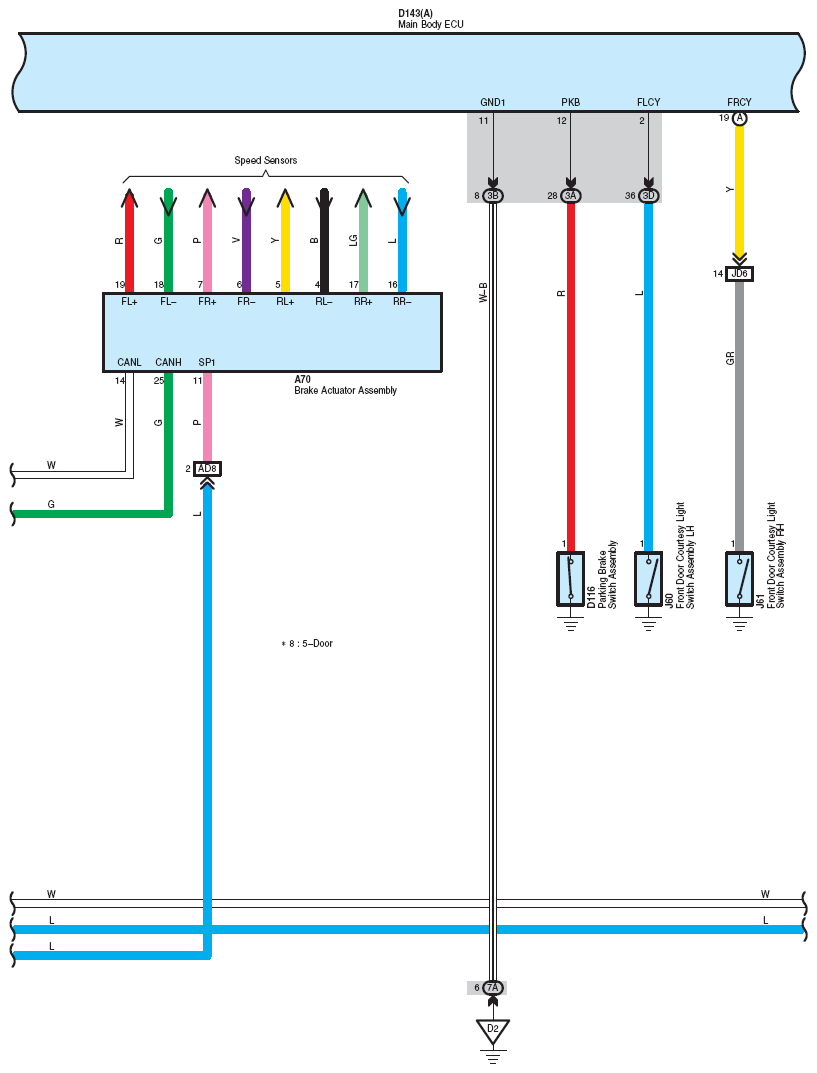

Fig 7: Combination Meter - Hatchback (7 Of 10)

G12219916

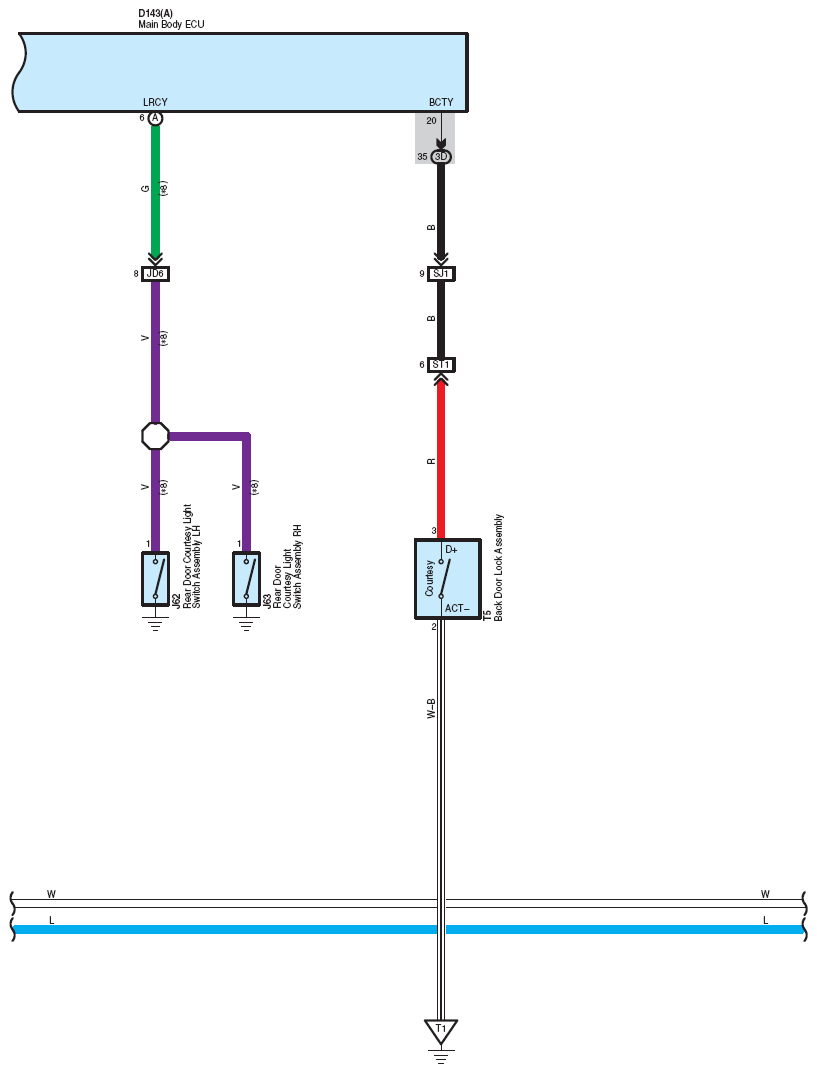

Fig 8: Combination Meter - Hatchback (8 Of 10)

G12219917

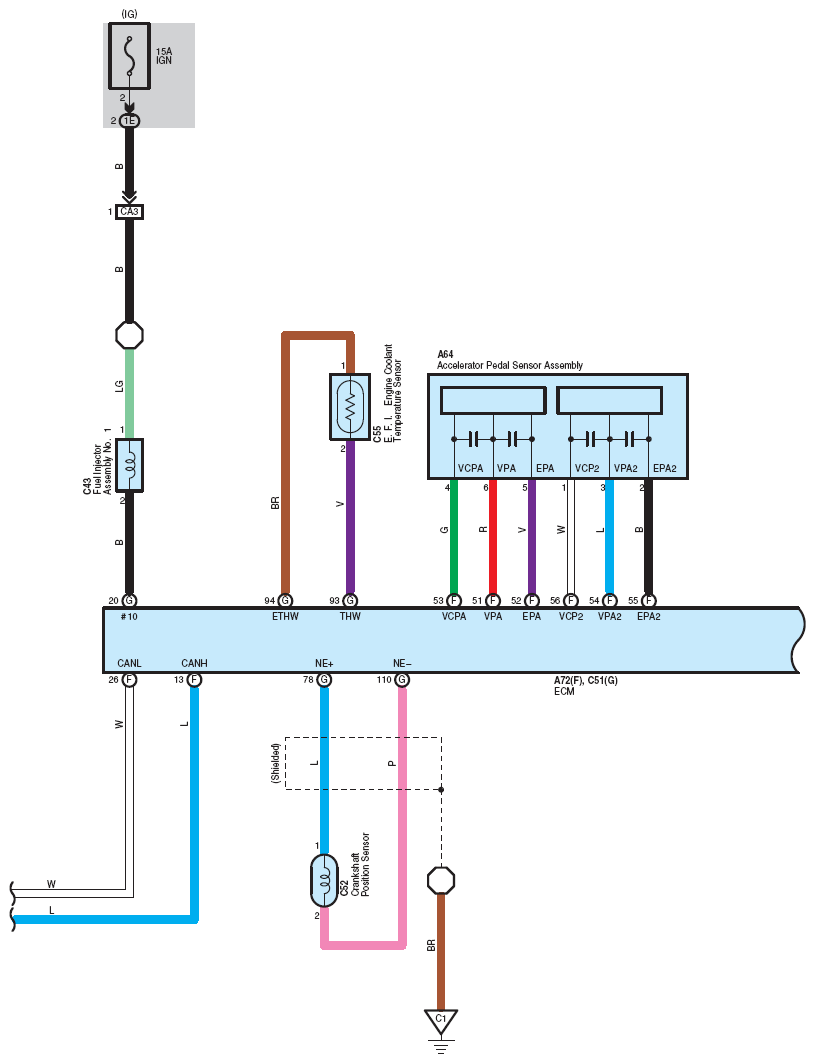

Fig 9: Combination Meter - Hatchback (9 Of 10)

G12219918

Fig 10: Combination Meter - Hatchback (10 Of 10)

G12219919
