Engine Control - Sedan: Connectors

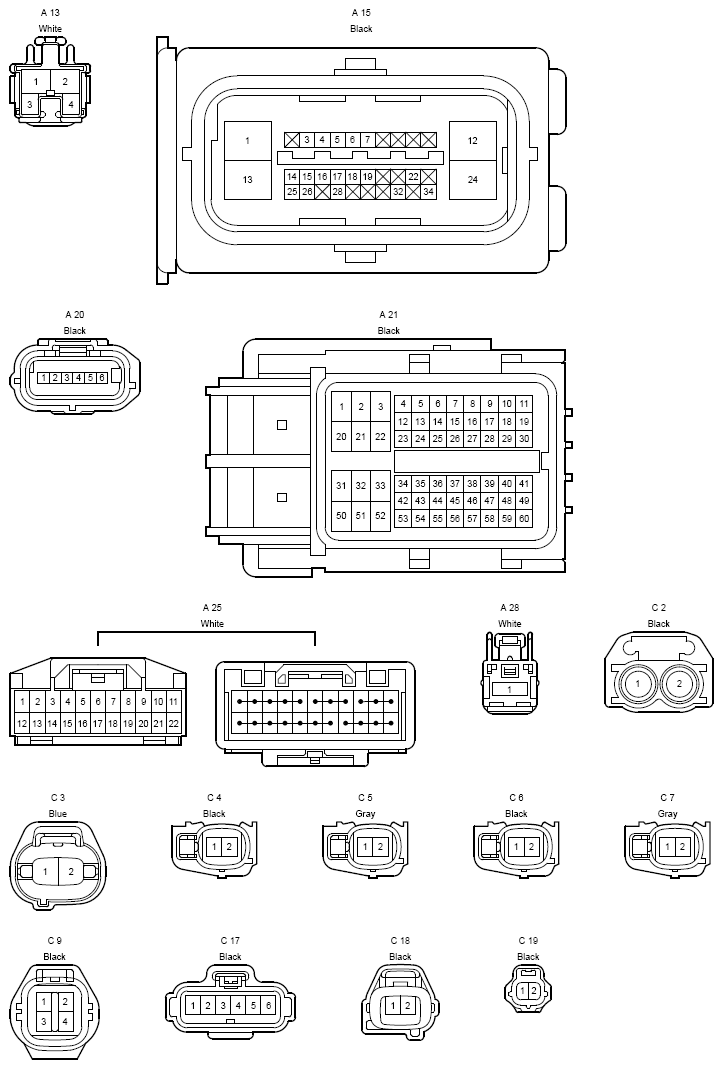

Fig 1: Connectors (1 Of 5)

G12220008

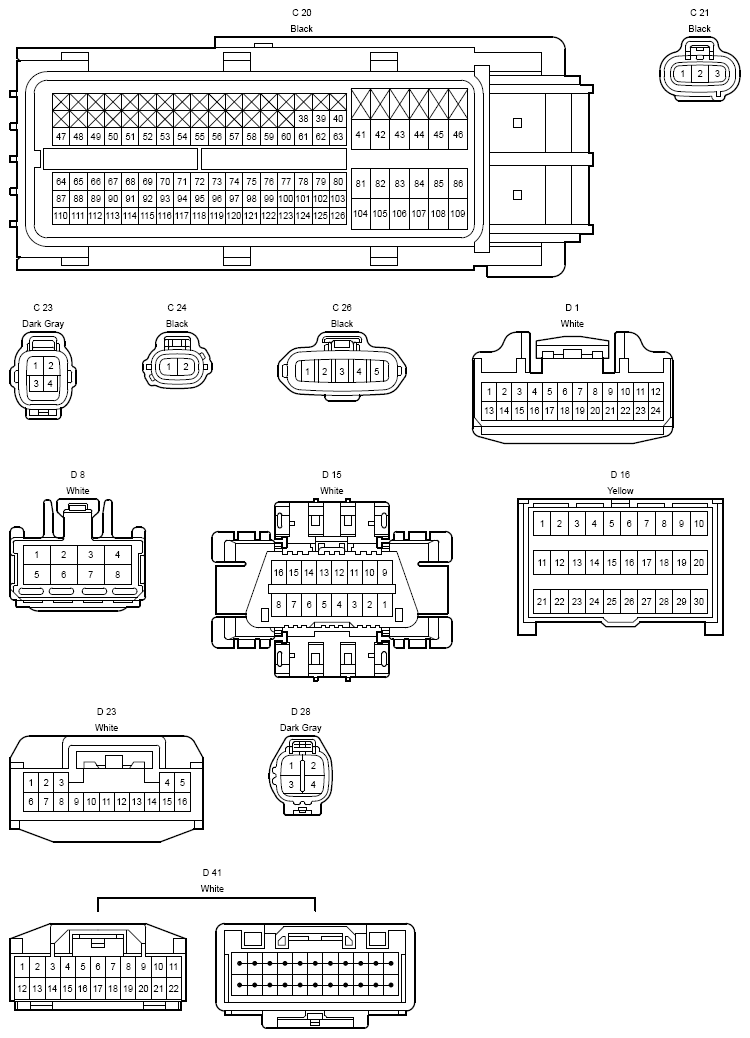

Fig 2: Connectors (2 Of 5)

G12220009

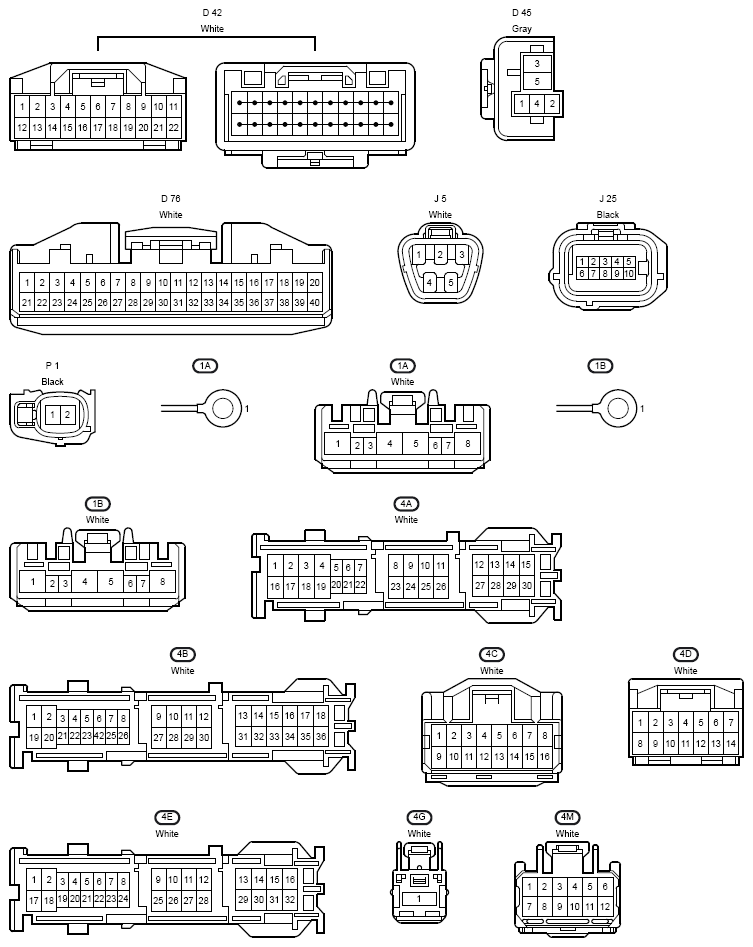

Fig 3: Connectors (3 Of 5)

G12220010

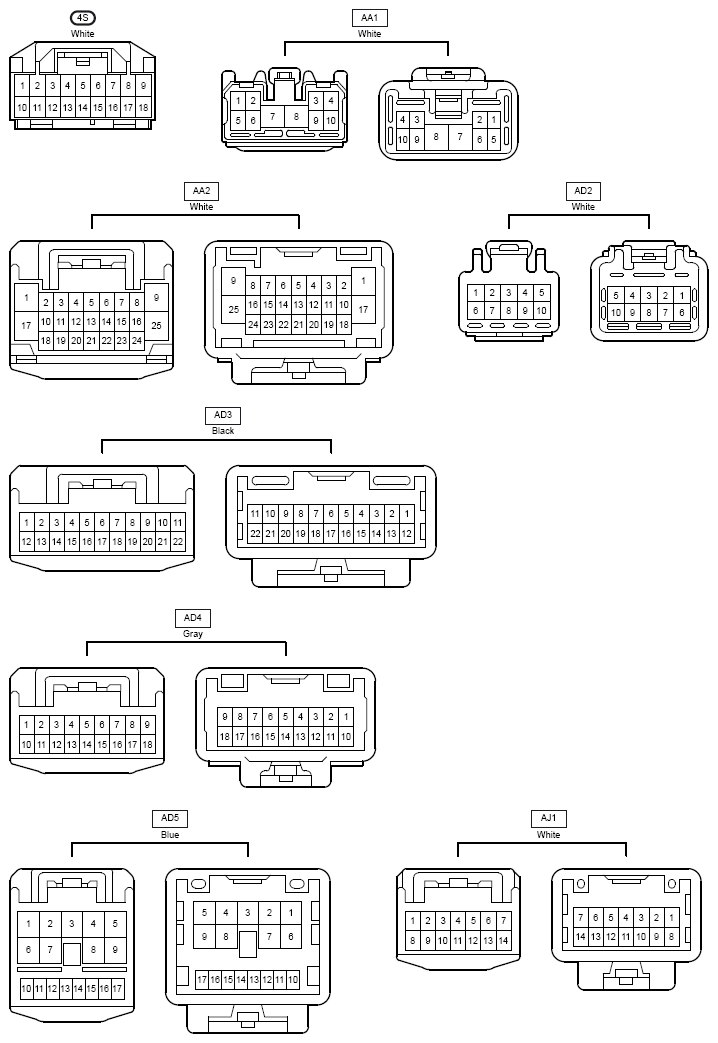

Fig 4: Connectors (4 Of 5)

G12220011

Fig 5: Connectors (5 Of 5)

G12220012
