System Diagrams

Fig 1: Power Window - Hatchback (1 Of 3)
G12220147

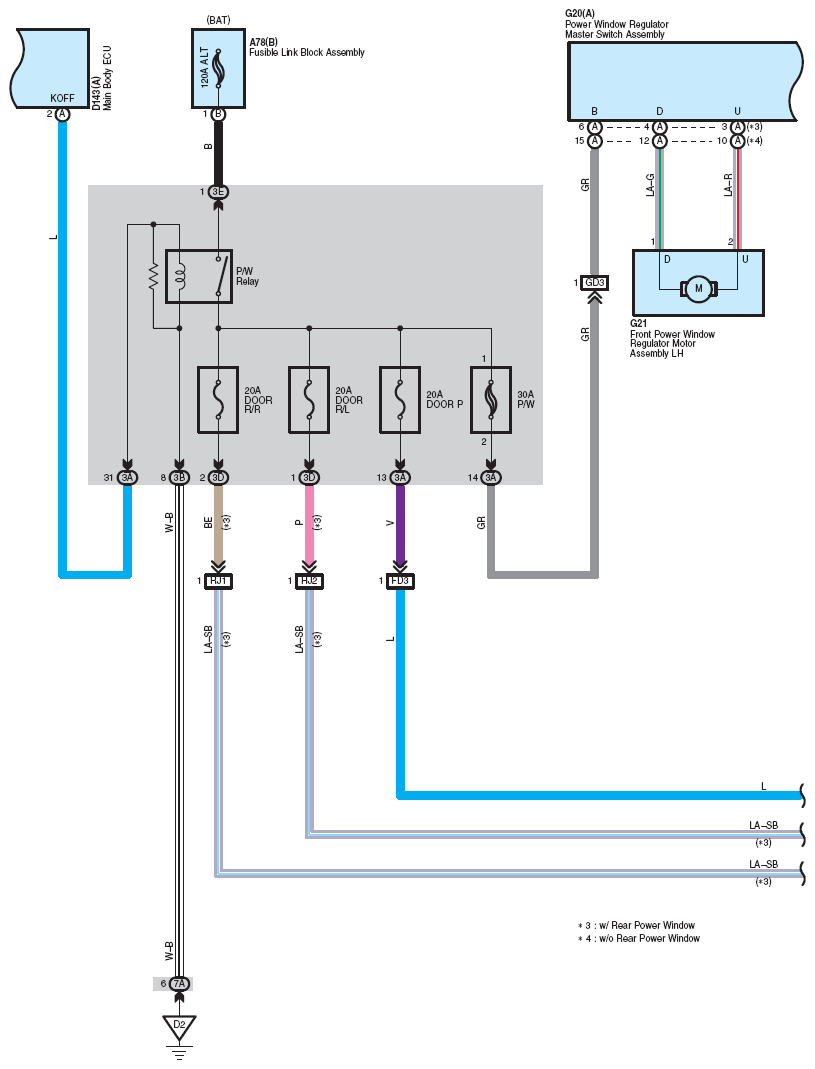

Fig 2: Power Window - Hatchback (2 Of 3)
G12220148

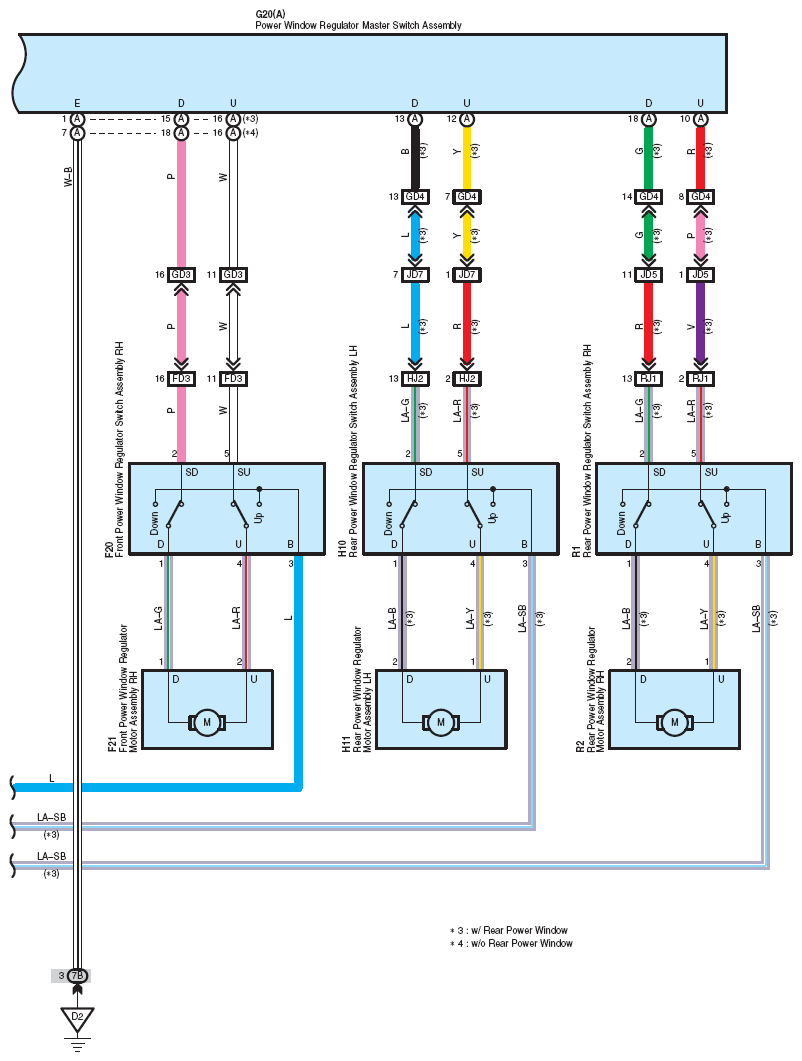

Fig 3: Power Window - Hatchback (3 Of 3)
G12220149
