Removal [07/2016 - ]: Procedure

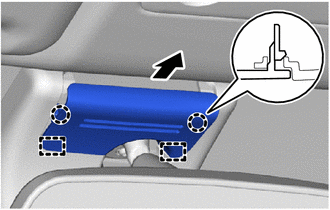

REMOVE PRE-COLLISION CITY COVER 2ND

Disengage the 2 claws and 2 guides to remove the pre-collision city cover 2nd as shown in the illustration.

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

NOTE:

If these claws are disengaged separately, they may break. Insert a molding remover between them and pull it down to disengage the claws simultaneously.

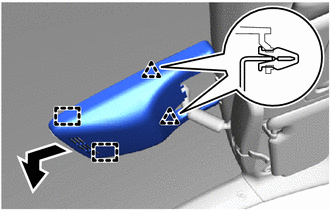

REMOVE PRE-COLLISION CITY COVER

Disengage the 2 clips and 2 guides to remove the pre-collision city cover as shown in the illustration.

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

HINT:

To avoid damaging the guides, always slide the pre-collision city cover parallel to the windshield glass.

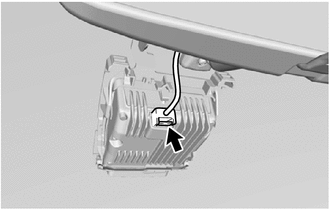

REMOVE PRE-COLLISION CITY SENSOR

Disconnect the connector.

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

NOTE:

Do not pull the harness forcibly when disconnecting the connector.

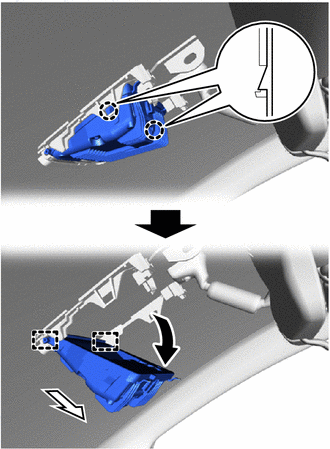

Disengage the 2 claws to separate the rear side of pre-collision city sensor.

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

NOTE:

If the pre-collision city bracket is deformed or damaged, replace it together with the windshield glass.
If the pre-collision city sensor has been struck or dropped, replace it with a new one.
Do not touch the camera lens.
Do not apply excessive force.

Disengage the 2 guides to remove the pre-collision city sensor as shown in the illustration.
