Power Window Control System - Diagnostic Codes
>>
Power Window Control System
>>
DTC B1219-11: Interior Boot/Trunk Release Switch Circuit Short To Ground
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC B1219-11: Interior Boot/Trunk Release Switch Circuit Short To Ground: Wiring Diagram
w/o Smart Key System

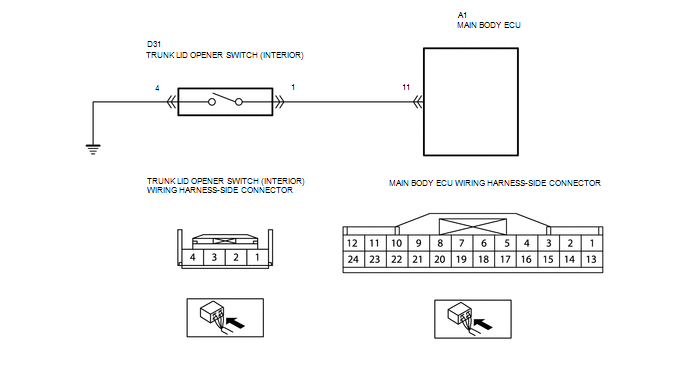

Fig 1: Trunk Lid Opener Switch (Interior) Wiring Diagram (W/O Smart Key System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/ Smart Key System
Fig 2: Trunk Lid Opener Switch (Interior) Wiring Diagram (W/Smart Key System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
