DTC C0023-14: Stop Lamp Control Circuit Short To Ground Or Open: Wiring Diagram

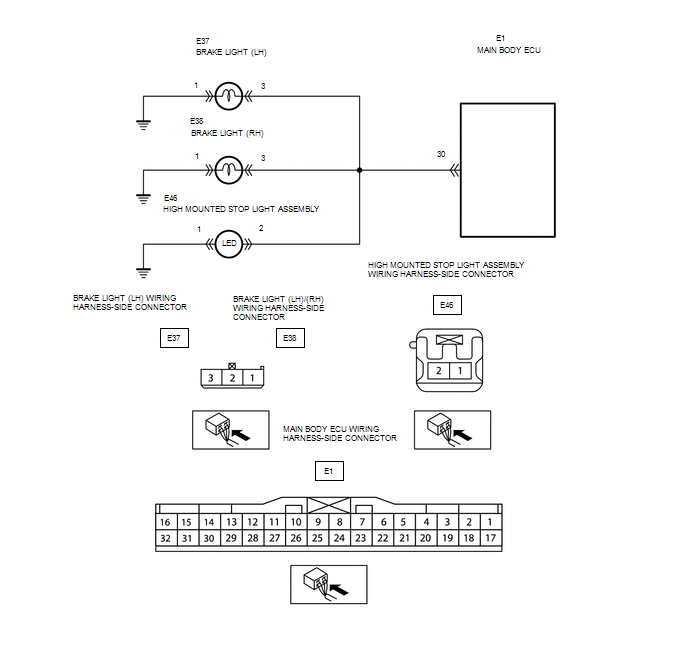

Fig 1: Stop Lamp Control Wiring Diagram With Connector End Views
GTY491135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
