DTC U0142-68: Lost Communication With Body Control Module "B" Event Information: Wiring Diagram

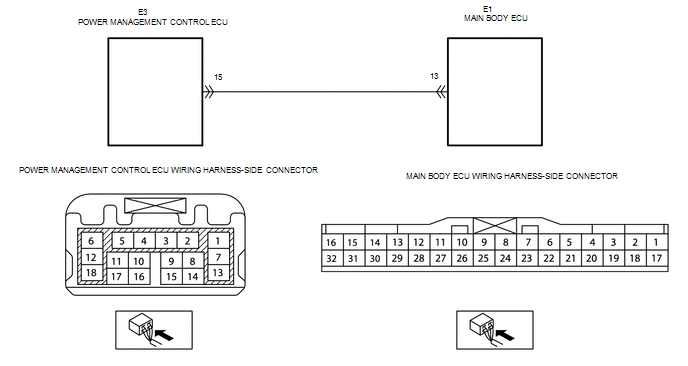

Fig 1: Body Control Module Wiring Diagram With Connector End Views
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
