Fuel Pump: Reassembly: Procedure

  1. ASSEMBLY FUEL PUMP
    1. Install the fuel filter.

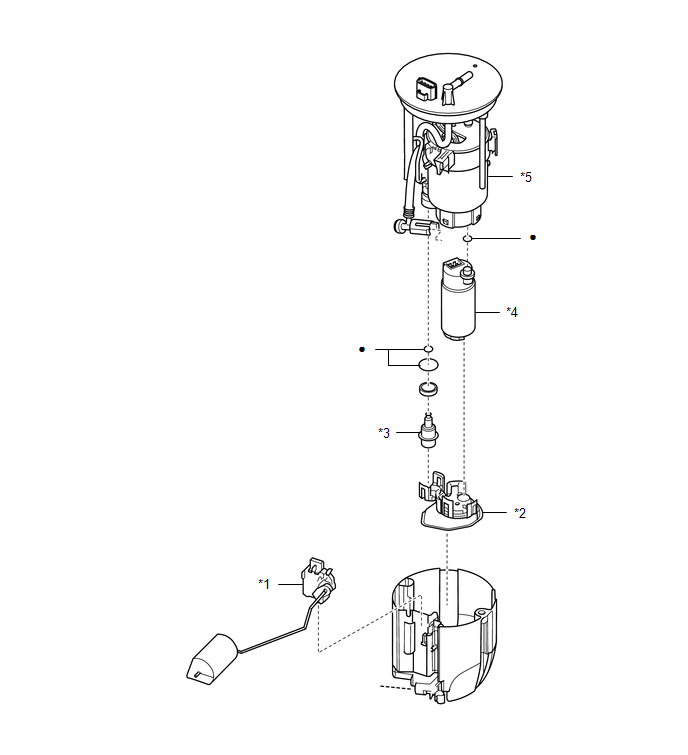

      GTY490464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Sender Gauge Assembly *2 Fuel Filter (Low-Pressure)
      *3 Pressure Regulator *4 Fuel Pump
      *5 Fuel Filter - -
      • Non-reusable part - -
    2. Install the fuel pump.
    3. Install the pressure regulator.
    4. Install the fuel filter (low-pressure).
    5. Install the fuel sender gage assembly.
    6. Install the fuel pump unit.

      Refer to INSTALLATION

    7. Complete the "AFTER SERVICE PRECAUTION".

      Refer to PROCEDURE - Step 1
