Knock Sensor: Removal: Procedure

  1. REMOVE KNOCK SENSOR
    1. Disconnect the negative battery cable.

      Refer to REMOVAL

    2. Remove the plug hole plate.

      Refer to REMOVAL

    3. Remove the intake manifold.

      Refer to REMOVAL

    4. Disconnect the KS connector.
    5. Remove the bolt.

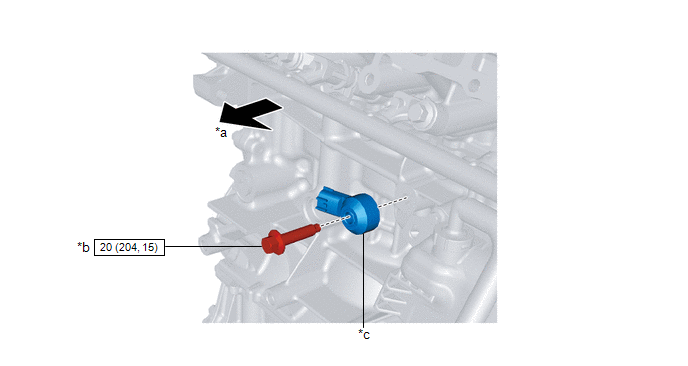

      GTY485292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Vehicle Front *b Bolt
      *c KS - -
      N*m (kgf*cm, ft.*lbf): Specified torque - -
    6. Remove the KS.

      See step  1
