Manifold Absolute Pressure Sensor: Removal: Procedure

  1. REMOVE MANIFOLD ABSOLUTE PRESSURE SENSOR
    1. Disconnect the negative battery cable.

      Refer to REMOVAL

    2. Disconnect the MAP sensor/IAT sensor No. 2 connector.
    3. Remove the screw.

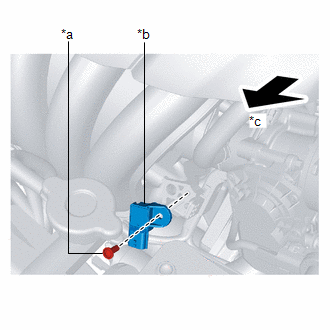

      GTY490114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screw
      *b MAP Sensor/IAT Sensor No. 2
      *c Vehicle Front
    4. Remove the MAP sensor/IAT sensor No. 2.
