Mass Air Flow Meter: Installation: Procedure

  1. INSTALL MASS AIR FLOW METER
    1. Install the MAF sensor/IAT sensor No. 1.
    2. Install the screws.
    3. Connect the MAF sensor/IAT sensor No. 1 connector.

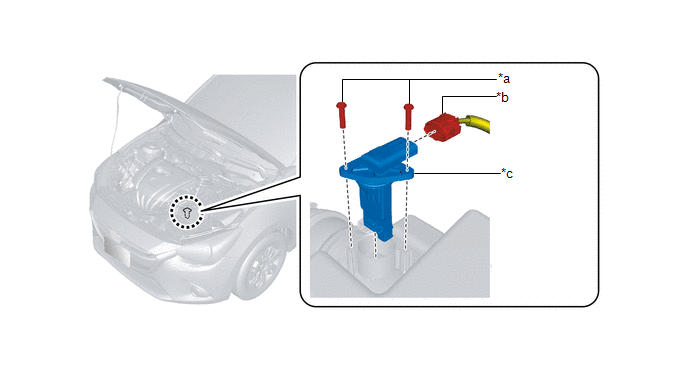

      GTY492132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screw *b Connector
      *c MAF Sensor/IAT Sensor No. 1 -
    4. Connect the negative battery cable.

      Refer to INSTALLATION
