Using The Reset Switch

  1. Park the vehicle on safe, level ground and adjust all four tire pressures to the specification while the tires are cold.
  2. Switch the ignition ON (engine off or on).
  3. Press and hold the tire pressure warning reset switch until the tire pressure warning light flashes 1 or 2 times and the indicator alarm sounds 1 time.
  4. When the tire pressure warning system initialization is performed, learning initiates. Learning is completed by driving the vehicle for approx. 20 min.

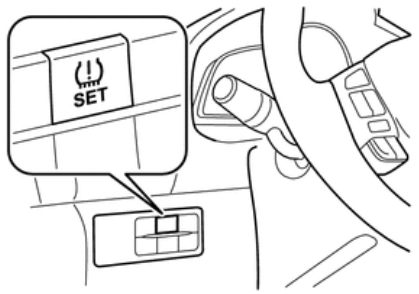

Fig 1: Identifying TPMS Reset Switch
G00561408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
