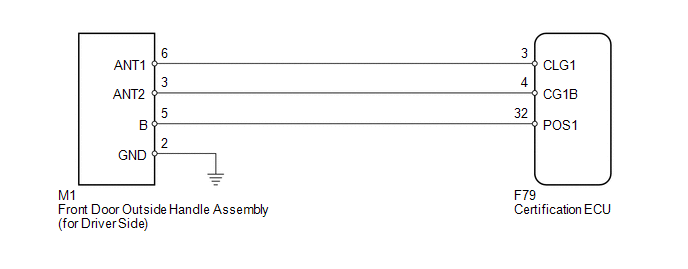

Driver Side Door Entry Lock and Unlock Functions do not Operate [08/2015 - 08/2019]: Wiring Diagram

GTY224561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
