System Diagram [08/2019 - ]

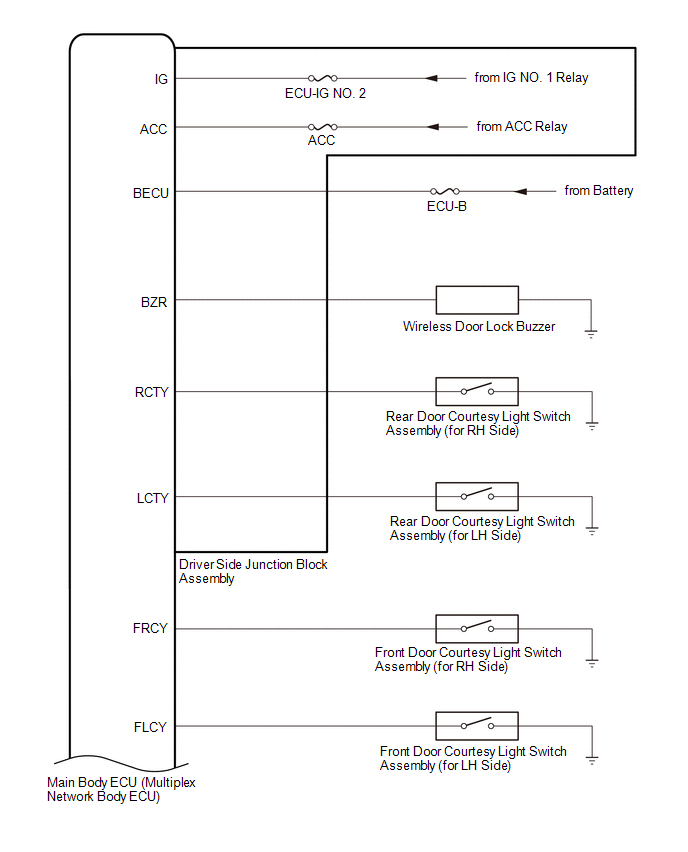

Fig 1: Wireless Door Lock Control System (W/ Smart Key System) Wiring Diagram (1 Of 4)
GTY943197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

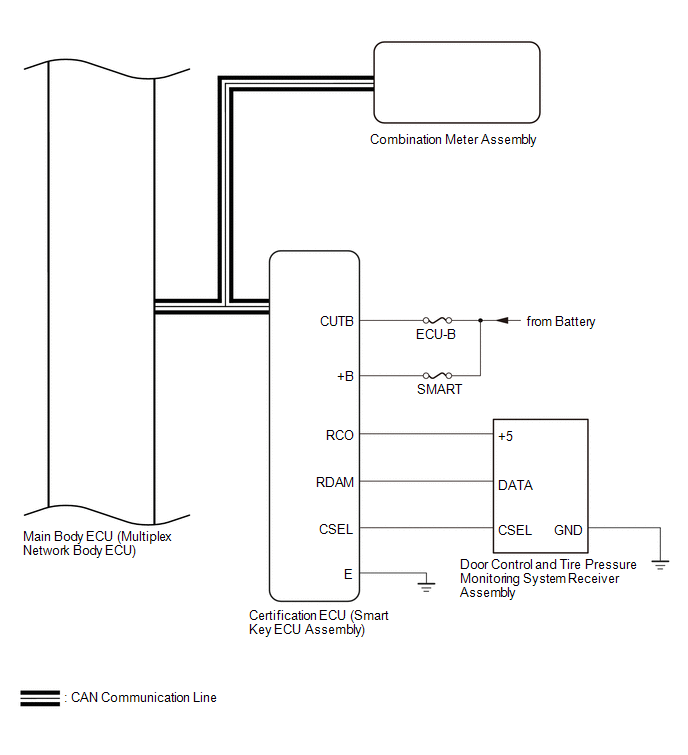

Fig 2: Wireless Door Lock Control System (W/O Smart Key System) Wiring Diagram (08/2019 -) (2 Of 4)
GTY920476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Wireless Door Lock Control System (W/O Smart Key System) Wiring Diagram (08/2019 -) (3 Of 4)
GTY881488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Wireless Door Lock Control System (W/O Smart Key System) Wiring Diagram (08/2019 -) (4 Of 4)
GTY840635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
