System Diagram [08/2013 - 08/2016]

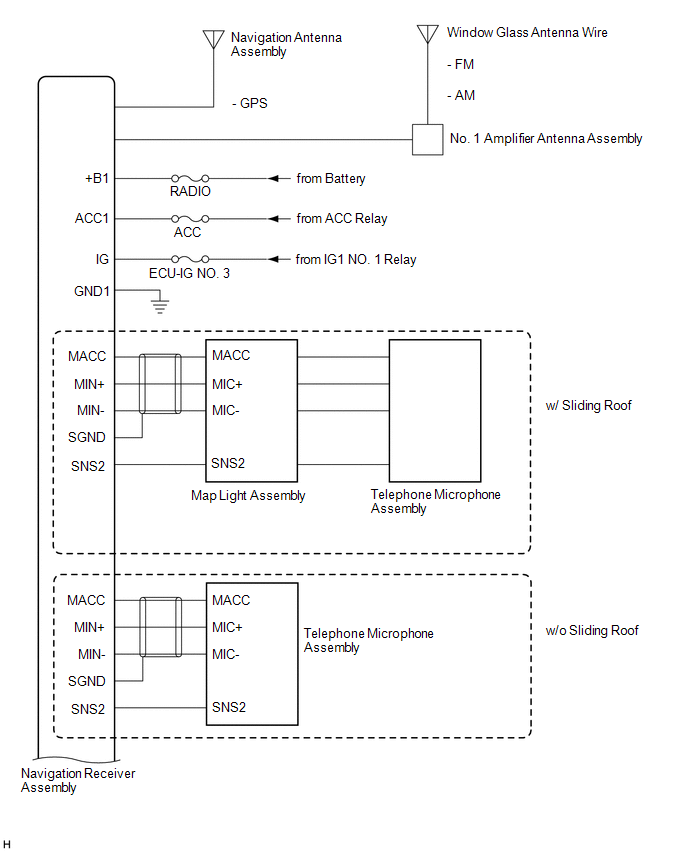

Fig 1: Navigation System Circuit Diagram (1 Of 3)
GTY437733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

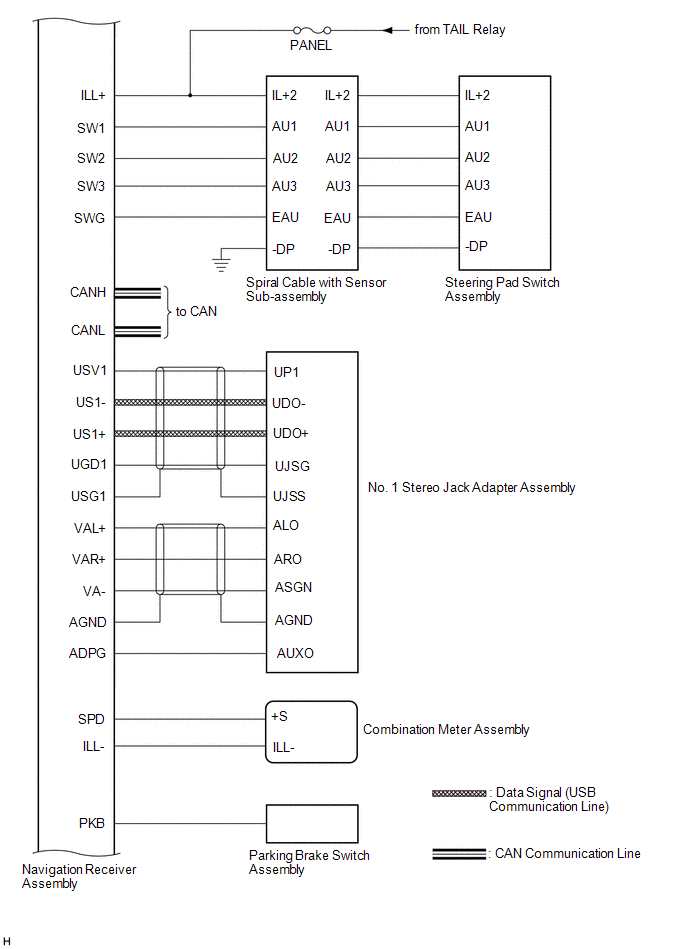

Fig 2: Navigation System Circuit Diagram (2 Of 3)
GTY428120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

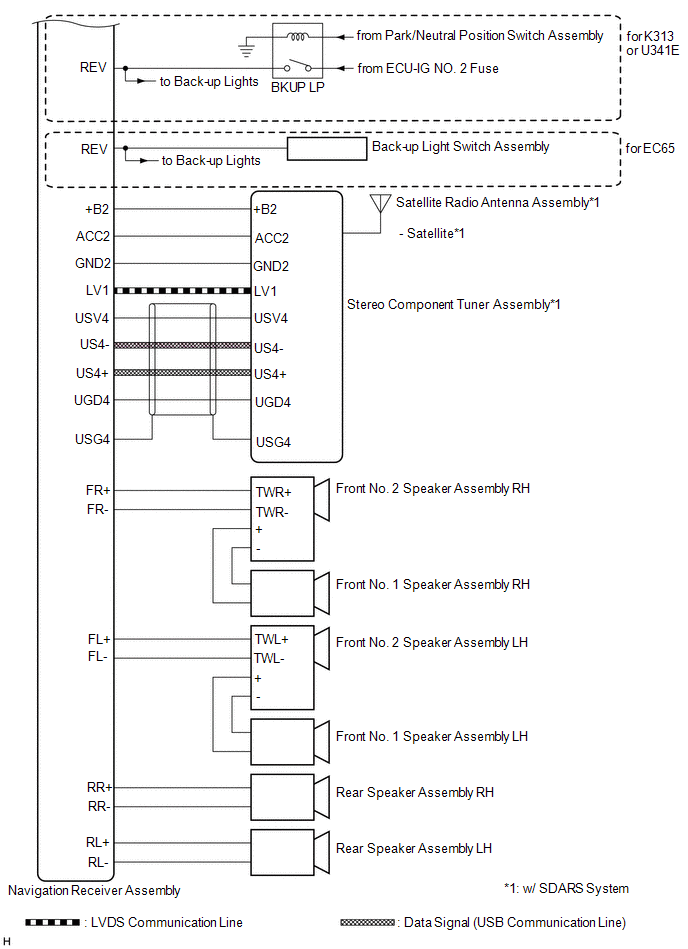

Fig 3: Navigation System Circuit Diagram (3 Of 3)
GTY436607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
