Mute Signal Circuit between Navigation Receiver Assembly and Stereo Component Amplifier [05/2019 - ]: Procedure
- INSPECT STEREO COMPONENT AMPLIFIER ASSEMBLY
- Measure the voltage according to the value(s) in the table below.

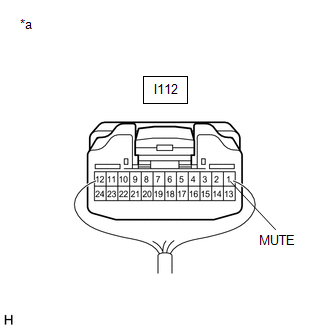

*a Component with harness connected
(Stereo Component Amplifier Assembly)Standard Voltage
Tester Connection Condition Specified Condition I112-1 (MUTE) - Body ground Power switch on (ACC)
Audio system playing
→ Audio system changing modes2.0 V or higher
→ Below 1 VResult
Proceed to OK NG
Result:
OK
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [05/2019 - ]
Result:
NG
See step 2
- Measure the voltage according to the value(s) in the table below.
- CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - STEREO COMPONENT AMPLIFIER ASSEMBLY)
- Disconnect the I33 navigation receiver assembly connector.
- Disconnect the I112 stereo component amplifier assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition I112-16 (MUT1) - I112-1 (MUTE) Always Below 1 Ω I112-16 (MUT1) or I112-1 (MUTE) - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 3
- INSPECT STEREO COMPONENT AMPLIFIER ASSEMBLY
- Disconnect the I33 navigation receiver assembly connector.
- Measure the voltage according to the value(s) in the table below.
*a Front view of wire harness connector
(to Navigation Receiver Assembly)Standard Voltage
Tester Connection Condition Specified Condition I33-16 (MUT1) - Body ground Power switch on (ACC)
Audio system playing2.0 V or higher Result
Proceed to OK NG
Result:
OK
REPLACE NAVIGATION RECEIVER ASSEMBLY. Refer to REMOVAL [05/2019 - 07/2020] , or refer to REMOVAL [07/2020 - ]
Result:
NG
REPLACE STEREO COMPONENT AMPLIFIER ASSEMBLY. Refer to REMOVAL [05/2019 - 07/2020] , or refer to REMOVAL [07/2020 - ]
