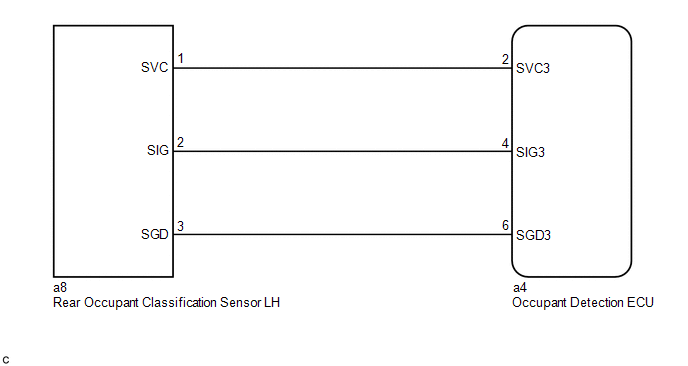

DTC B1782: Rear Occupant Classification Sensor LH Circuit Malfunction [09/2016 - 05/2019]: Wiring Diagram

GTY715845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
