Engine Control System - Diagnostics - Introduction (1 Of 3)
>>
SFI System
>>
System Diagram [05/2019 - ]
>>
System Diagram [05/2019 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [05/2019 - ]

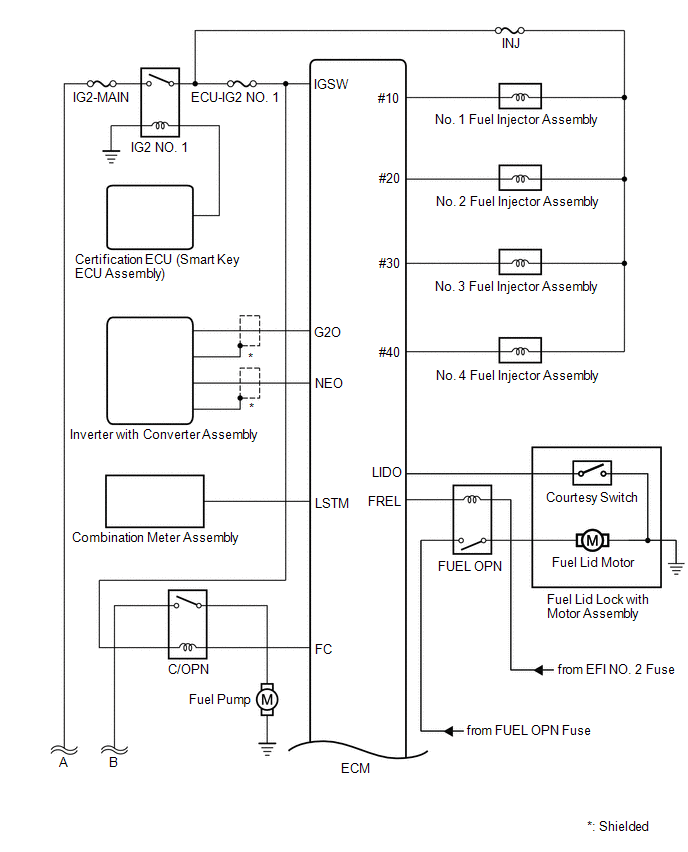

Fig 1: SFI System Diagram [05/2019 - ] (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: SFI System Diagram [05/2019 - ] (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: SFI System Diagram [05/2019 - ] (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: SFI System Diagram [05/2019 - ] (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
