Operation Check [08/2016 - ]

  1. CHECK WINDOW LOCK FUNCTION
    1. Turn the ignition switch ON.
    2. Press the window lock switch of the power window regulator master switch assembly.

      HINT:

      The illumination (LED) built into the switch knob of each seat does not turn off.

      GTY508452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check that the power window for each seat except the driver seat can no longer be operated.
    4. When the window lock switch is pressed again, check that the power window for each seat except the driver seat can be operated.
  2. CHECK MANUAL UP / DOWN FUNCTION
    1. Check that the driver door power window operates as follows:
      Condition Master Switch Switch Operation Power Window
      Ignition switch ON Driver door Pulled up UP (Closes)
      Pushed halfway down DOWN (Opens)
    2. Check that the front passenger door window and rear power windows operate as follows:
      Condition Regulator Switch Switch Operation Power Window
      • Ignition switch ON
      • Window lock switch off
      		 Front passenger door Pulled up UP (Closes)
      Pushed down DOWN (Opens)
      Rear LH door*1 Pulled up UP (Closes)
      Pushed down DOWN (Opens)
      Rear RH door*1 Pulled up UP (Closes)
      Pushed down DOWN (Opens)
      1. *1: for Double Cab
    3. Check that the power window (for back door power window)* operates as follows:
      Condition Regulator Switch Switch Operation Power Window
      Ignition switch ON Back Door Pulled up Closes
      Pushed down Opens
      1. *: w/ Back Door Power Window
  3. CHECK AUTO DOWN FUNCTION
    1. Check that the driver door power window operates as follows:
      Condition Master Switch Switch Operation Power Window
      • Ignition switch ON
      • Window lock switch off
      		 Driver door Pushed down (One touch operation) AUTO DOWN (Opens)
  4. CHECK REMOTE MANUAL UP / DOWN FUNCTION
    1. Check that the front passenger door window and rear power windows operate as follows:
      Condition Master Switch Switch Operation Power Window
      Ignition switch ON Front passenger door Pulled up UP (Closes)
      Pushed down DOWN (Opens)
      Rear LH door*1 Pulled up UP (Closes)
      Pushed down DOWN (Opens)
      Rear RH door*1 Pulled up UP (Closes)
      Pushed down DOWN (Opens)
      1. *1: for Double Cab
  5. CHECK POWER WINDOW SWITCH LED ILLUMINATION
    1. When the ignition switch is turned from off to ON with the connectors connected, check that the illumination (LED) on the switch portion of the power window regulator switch assembly turns on.

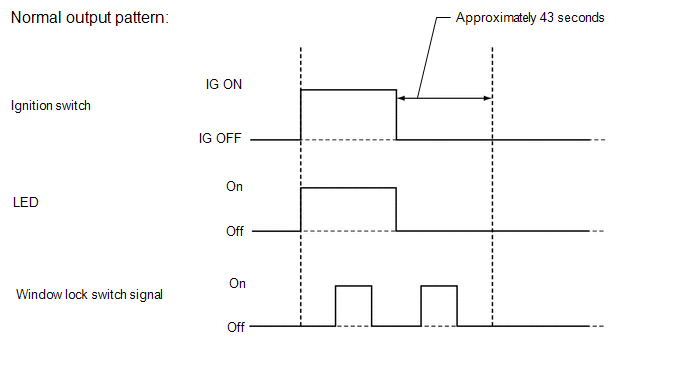

      GTY544273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
