Terminals Of Ecu

  1. MAIN BODY ECU INSPECTION
    1. Remove the front scuff plate. (LH)

      Refer to REMOVAL

    2. Remove the front side trim. (LH)

      Refer to REMOVAL

    3. Remove the driver-side lower panel.

      Refer to REMOVAL

    4. Remove the auto leveling control module (with headlight auto leveling system).

      Refer to REMOVAL

    5. Verify that the voltages of each of the terminals are as indicated in the terminal voltage table (reference).

      Refer to TERMINALS OF ECU

      • If the voltage is not as specified in the terminal voltage table (reference), inspect the parts under Inspection item(s) and related wiring harnesses.
        • If the system does not work normally even though the inspection items are normal, identify the malfunctioning location according to the directions in [DIAGNOSTIC SYSTEM] and [SYMPTOM TROUBLESHOOTING] then perform repairs.

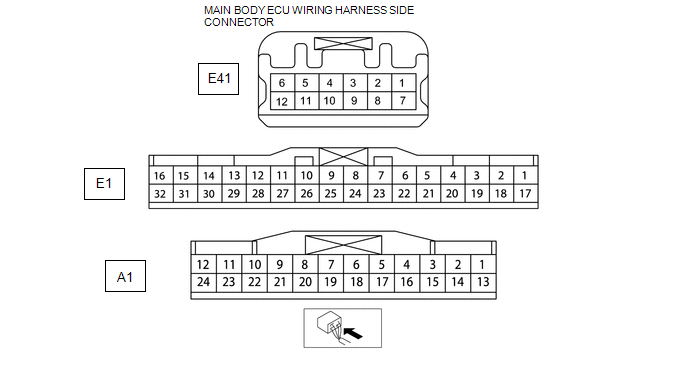

          Fig 1: Main Body ECU Connector End Views (E41, E1 And A1)
          GTY489776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Terminal Voltage Table (Reference)
    Terminal Signal Connected to Measurement condition Voltage (V) Inspection item(s)
    E41-1 Power supply HAZARD 15 A fuse Under any condition B+ HAZARD 15 A fuse
    E41-7 Power supply
    • ROOM 25 A fuse
    • INTERIOR15 A fuse
    Under any condition B+
    • ROOM 25 A fuse
    • INTERIOR15 A fuse
    E41-2 - - - - -
    E41-8*1 Brake light control Brake light relay Main body ECU simulation item STOP_LMP_CTL is on 1.0 or less Brake light relay
    Main body ECU simulation item STOP_LMP_CTL is off B+
    E41-3 Rear turn light (RH) control Rear turn light (RH) Ignition is switched ON (engine off or on) Turn switch is in right turn position 1.0 or less ←→ B+ Rear turn light (RH)
    Turn switch is in position other than above 1.0 or less
    E41-9 - - - - -
    E41-4 Rear turn light (LH) control Rear turn light (LH) Ignition is switched ON (engine off or on) Turn switch is in left turn position 1.0 or less ←→ B+ Rear turn light (LH)
    Turn switch is in position other than above 1.0 or less
    E41-10 Interior light power supply Personal light Under any condition B+ Personal light
    E41-5 - - - - -
    E41-11 - - - - -
    E41-6 Ground Body ground Under any condition 1.0 or less Body ground
    E41-12 Ground Body ground Under any condition 1.0 or less Body ground
    E1-1 Lock input (front door lock-link switch [driver's side]) Front door lock (driver's side) Driver's door is locked 1.0 or less Front door lock (driver's side)
    Driver's door is unlocked Approx. 10
    E1-17 Unlock input (front door locklink switch [driver's side]) Front door lock (driver's side) Driver's door is locked Approx. 9.5 Front door lock (driver's side)
    Driver's door is unlocked 1.0 or less
    E1-2 CAN_L CAN system related module Terminal used for communication therefore determination based on terminal voltage is not possible.
    E1-18 CAN_H CAN system related module Terminal used for communication therefore determination based on terminal voltage is not possible.
    E1-3 Rear door latch switch (LH) signal Rear door lock (LH) Rear door (LH) is open 1.0 or less Rear door lock (LH)
    Rear door (LH) is closed Approx. 9.5
    E1-19 Rear door latch switch (RH) signal Rear door lock (RH) Rear door (RH) is open 1.0 or less Rear door lock (RH)
    Rear door (RH) is closed Approx. 9.5
    E1-4 Front door latch switch (passenger's side) signal Front door lock (passenger's side) Front door (passenger's side) is open 1.0 or less Front door lock (passenger's side)
    Front door (passenger's side) is actuator (passenger's side) closed Approx. 9.0
    E1-20 Front door latch switch (driver's side) signal Front door lock (driver's side) Front door (driver's side) is open 1.0 or less Front door lock (driver's side)
    Front door (driver's side) is closed Approx. 9.5
    E1-5 Serial communication Power window master switch Terminal used for communication therefore determination based on terminal voltage is not possible.
    E1-21 Serial communication Engine stop and start ECU Terminal used for communication therefore determination based on terminal voltage is not possible.
    E1-6*2 Door lock control switch signal Door lock control switch (RH) Door lock control switch is turned to unlock side (driver's side or passenger's side) 1.0 or less Door lock control switch (RH)
    Door lock control switch is turned to lock door lock control switch (RH) side (driver's side or passenger's side) Approx. 1.25
    Other Approx 5.0
    E1-22 Front door key cylinder switch signal Front door lock (driver's side) Door key cylinder is turned to unlock side 1.0 or less Front door lock (driver's side)
    Door key cylinder is turned to lock actuator (driver's side) side Approx. 1.25
    Other Approx 5.0
    E1-7*3 Lock input (front door lock-link switch (passenger's side), rear door lock-link switch)
    • Front door lock (passenger's side)
    • Rear door lock (driver's side), (passenger's side)
    Passenger's door or rear seat door is unlocked 1.0 or less
    • Front door lock (passenger's side)
    • Rear door lock (driver's side), (passenger's side)
    Passenger's door and rear seat door are locked B+
    E1-23 - - - - -
    E1-8 - - - - -
    E1-24 - - - - -
    E1-9 Fuel sensor signal Fuel sender gauge assembly Inspect fuel sender gauge assembly and related wiring harness because determination based on terminal voltage is not possible.
    Refer to INSPECTION
    E1-25 Fuel sensor ground Fuel sender gauge assembly Under any condition 1.0 or less Fuel sender gauge assembly
    E1-10 Trunk lid unlatch switch signal (exterior) Trunk lid opener switch (exterior) Trunk is opened 1.0 or less Trunk lid opener switch (exterior)
    Trunk is closed Approx. 4.5
    E1-26 - - - - -
    E1-11 - - - - -
    E1-27 - - - - -
    E1-12 - - - - -
    E1-28 - - - - -
    E1-13 LIN communication Power management control ECU Terminal used for communication therefore determination based on terminal voltage is not possible.
    E1-29*1 Brake switch signal
    • Engine stop and start ECU
    • Stop light switch
    Brake pedal is depressed B+
    • Engine stop and start ECU
    • Stop light switch
    Brake pedal is not depressed 1.0 or less
    E1-14 - - - - -
    E1-30*1 Brake light control
    • Brake light relay
    • Brake light (LH), (RH)
    • High mounted stop light assembly
    • Condenser
    Brake pedal is depressed B+
    • Brake light relay
    • Brake light (LH), (RH)
    • High mounted stop light assembly
    • Condenser
    Brake pedal is not depressed 1.0 or less
    E1-31 - - - - -
    E1-16 - - - - -
    E1-32 - - - - -
    A1-1 Front turn light (RH) control Front turn light (RH) Ignition is switched ON (engine off or on) Turn switch is in right turn position 1.0 or less ←→ B+ Front turn light (RH)
    Turn switch is in position other than above 1.0 or less
    A1-13 Front turn light (LH) control Front turn light (LH) Ignition is switched ON (engine off or on) Turn switch is in left turn position 1.0 or less ←→ B+ Front turn light (LH)
    Turn switch is in position other than above 1.0 or less
    A1-2 CAN_H CAN system related module Terminal used for communication therefore determination based on terminal voltage is not possible.
    A1-14 CAN_L CAN system related module Terminal used for communication therefore determination based on terminal voltage is not possible.
    A1-3 Front blower motor relay control
    • Blower relay
    • HEATER 40 A fuse
    Ignition is switched ON (engine off or on) Front blower motor is operated using fan switch 1.0 or less
    • Blower relay
    • HEATER 40 A fuse
    Front blower motor is turned off by pressing climate control unit OFF button B+
    A1-15 Windshield wiper INT relay control Wiper INT relay Ignition is switched ON (engine off or on) Windshield wiper switch is in position other than OFF 1.0 or less Wiper INT relay
    Windshield wiper switch is in OFF position B+
    A1-4 Windshield wiper motor (HI) control Wiper HI relay Ignition is switched ON (engine off or on) Windshield wiper switch is in HIGH position 1.0 or less Wiper HI relay
    Windshield wiper switch is in OFF position B+
    A1-16 Horn relay control Horn relay Ignition is switched ON (engine off or on) Horn switch is on 1.0 or less Horn relay
    Horn switch is off B+
    A1-5*3 Front fog light relay control Front fog light relay Ignition is switched ON (engine off or on) Front fog light switch is on 1.0 or less Front fog light relay
    Front fog light switch is off B+
    A1-17 - - - - -
    A1-6 Rear window defogger relay control Rear window defogger relay Ignition is switched ON (engine off or on) Rear window defogger switch is on 1.0 or less Rear window defogger relay
    Rear window defogger switch is off B+
    A1-18*4 Burglar horn relay control Theft-deterrent relay Ignition is switched ON (engine off or on) Horn switch is on B+ Theft-deterrent relay
    Horn switch is off 1.0 or less
    A1-7 Autostop switch signal Windshield wiper motor Ignition is switched ON (engine off or on) Windshield wiper switch is on and windshield wiper is operating 1.0 or less Windshield wiper motor
    Windshield wiper switch is off B+
    A1-19 Power supply
    • ENG+B 7.5 A fuse
    • ROOM 25 A fuse
    Under any condition B+
    • ENG+B 7.5 A fuse
    • ROOM 25 A fuse
    A1-8 Ignition power supply METER1 10 A fuse Ignition is switched ON (engine off or on) B+ METER1 10 A fuse
    The ignition is switched off (LOCK) 1.0 or less
    A1-20 - - - - -
    A1-9*5 Washer fluid level sensor signal Washer fluid level sensor Ignition is switched ON (engine off or on) Washer fluid level sensor is less than MIN (washer fluid level sensor on) 1.0 or less Washer fluid level sensor
    Washer fluid level sensor is MIN or more (Washer fluid level sensor off) B+
    A1-21 Brake fluid level sensor signal Brake fluid level sensor Ignition is switched ON (engine off or on) Brake fluid level sensor is less than MIN (brake fluid level sensor on) 1.0 or less Brake fluid level sensor
    Brake fluid level sensor is MIN or more (brake fluid level sensor off) B+
    A1-10 - - - - -
    A1-22 Horn switch control Horn switch Ignition is switched ON (engine off or on) Horn switch is on (long press) 1.0 or less Horn switch
    Horn switch is off B+
    A1-11 Trunk unlatch switch signal (interior) Trunk lid opener switch (interior) Trunk lid opener switch (interior) is on (trunk lid opener switch (interior) is pressed) 1.0 or less Trunk lid opener switch (interior)
    Trunk lid opener switch (interior) is off (trunk lid opener switch (interior) is not pressed) B+
    A1-23 - - - - -
    A1-12 Hood latch switch signal Hood latch switch Hood is open Approx. 9.0 Hood latch switch
    Hood is closed 1.0 or less
    A1-24 LIN communication Auto-light sensor/rain sensor*6 Terminal used for communication therefore determination based on terminal voltage is not possible.

    *1 : With Pre-collision

    *2 : With door lock control switch

    *3 : With front fog light

    *4 : With security horn assembly

    *5 : With washer fluid level sensor

    *6 : With auto light system/auto wiper system
