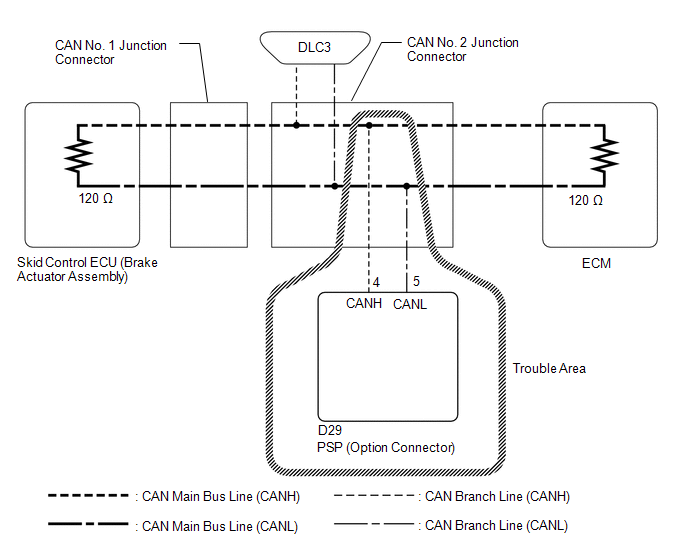

Bus Buffer ECU Communication Stop Mode [06/2016 - ]: Wiring Diagram

GTY705809

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
