All Door Entry Lock/Unlock Functions do not Operate, but Wireless Functions Operate [03/2017 - ]: Procedure

  1. CHECK POWER DOOR LOCK OPERATION
    1. When the door control switch on the power window regulator master switch assembly is operated, check that the doors unlock and lock according to switch operation (Refer to OPERATION CHECK [03/2017 - ] ).

      OK

      Door locks operate normally.

    Result:

    NG

    GO TO POWER DOOR LOCK CONTROL SYSTEM (PROCEED TO PROBLEM SYMPTOMS TABLE). Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [06/2016 - ]

    Result:

    OK

    See step  2

  2. READ VALUE USING TECHSTREAM (AUTO ENTRY CANCEL SW)
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Smart Key / Data List.
    5. According to the display on the Techstream, read the Data List.
      SMART KEY

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Auto Entry Cancel SW Entry cancel function setting / OFF or ON Mode status displayed
      OFF: Smart key system not canceled
      ON: Smart key system canceled      		 The default setting for the entry cancel function is OFF. If the customer requests that the smart key system functions (locking and unlocking the doors while carrying the key, etc.) be canceled, the setting can be changed through the customize function (Refer to CUSTOMIZE PARAMETERS [03/2017 - ] ).
      RESULT

      Result Proceed to
      Entry function cancel is OFF A
      Entry function cancel is ON B

    Result:

    B

    PERFORM CANCELLATION OF ENTRY KEY CANCEL FUNCTION. Refer to  CUSTOMIZE PARAMETERS [03/2017 - ]

    Result:

    A

    See step  3

  3. CHECK WAVE ENVIRONMENT
    1. Move the electrical key transmitter sub-assembly as described below and perform the operation inspection (Refer to OPERATION CHECK [03/2017 - 12/2017] Refer to OPERATION CHECK [12/2017 - ] ).

      HINT:

      • When the electrical key transmitter sub-assembly is brought near the front door outside handle assembly or electrical key antenna, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
      • The transmitting waves of the wireless functions and entry functions are the same, but the wave logic is different. Therefore, it is possible that only the wireless functions or only the entry functions are affected by wave interference.
    2. Bring the electrical key transmitter sub-assembly near the front door outside handle assembly LH, and perform a front driver door entry lock and unlock operation check.

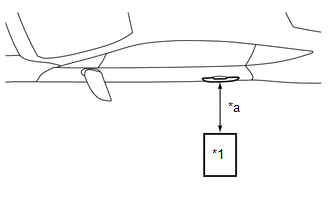

      GTY714220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the key is brought within 0.2 m (0.656 ft.) of the front door outside handle assembly LH, communication is not possible.

      TEXT IN ILLUSTRATION

      *1 Electrical Key Transmitter Sub-assembly
      *a Approximately 0.3 m (0.98 ft.)
    3. Bring the electrical key transmitter sub-assembly near the front door outside handle assembly RH, and perform a front passenger side door entry lock and unlock operation check.

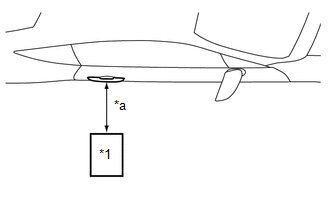

      GTY736355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the key is brought within 0.2 m (0.656 ft.) of the front door outside handle assembly RH, communication is not possible.

      TEXT IN ILLUSTRATION

      *1 Electrical Key Transmitter Sub-assembly
      *a Approximately 0.3 m (0.98 ft.)
    4. Bring the electrical key transmitter sub-assembly near the electrical key antenna (outside luggage), and perform an entry luggage compartment door open function check.

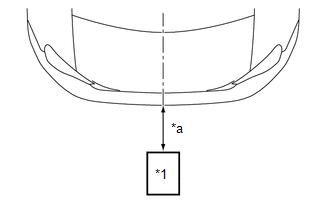

      GTY711347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the key is brought within 0.2 m (0.656 ft.) of the rear bumper, communication is not possible.

      TEXT IN ILLUSTRATION

      *1 Electrical Key Transmitter Sub-assembly
      *a Approximately 0.3 m (0.98 ft.)

      HINT:

      • If the inspection result is that the problem only occurs in certain locations or at certain times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.
      • If wave interference seems to be the likely cause of the problem, ask the customer if the problem occurs in specific locations.
      • Move the vehicle to a different location, perform the following procedure and check if the symptoms can be reproduced.
      • If a tool for checking electric waves, such as a signal strength meter, is available, move around the area while observing both the LF band (used by the vehicle antenna to form the detection area) and RF band (used by the electrical key transmitter sub-assembly for transmission) to check for locations where there is wave interference.
      RESULT

      Result Proceed to
      All operation checks fail A
      All checks are normal B
      Some operation checks are normal C

    Result:

    B

    AFFECTED BY WAVE INTERFERENCE

    Result:

    C

    GO TO OTHER PROBLEM (PROCEED TO PROBLEM SYMPTOMS TABLE FOR EACH DOOR). Refer to  PROBLEM SYMPTOMS TABLE [03/2017 - ]

    Result:

    A

    See step  4

  4. CHECK KEY DIAGNOSTIC MODE
    1. Check the following antennas in the key diagnostic mode (Refer to OPERATION CHECK [03/2017 - 12/2017] Refer to OPERATION CHECK [12/2017 - ] ).
      1. Check the electrical key antenna (for driver door):
        GTY714220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *1 Electrical Key Transmitter Sub-assembly
        *a 0.7 to 1.0 m (2.30 to 3.28 ft.)

        When the electrical key transmitter sub-assembly is brought within 0.7 to 1 m (2.30 to 3.28 ft.) of the front door outside handle assembly LH, check that the wireless door lock buzzer sounds.

      2. Check the electrical key antenna (for front passenger door):
        GTY736355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *1 Electrical Key Transmitter Sub-assembly
        *a 0.7 to 1.0 m (2.30 to 3.28 ft.)

        When the electrical key transmitter sub-assembly is brought within 0.7 to 1 m (2.30 to 3.28 ft.) of the front door outside handle assembly RH, check that the wireless door lock buzzer sounds.

      3. Check the indoor electrical key oscillator (front floor):
        GTY734959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *1 Electrical Key Transmitter Sub-assembly
        *a Inspection point

        When the electrical key transmitter sub-assembly is at the inspection point, check that the wireless door lock buzzer sounds.

      4. Check the No. 2 indoor electrical key oscillator (rear floor):
        GTY698476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *1 Electrical Key Transmitter Sub-assembly
        *a Inspection point

        When the electrical key transmitter sub-assembly is at the inspection point, check that the wireless door lock buzzer sounds.

      5. Check the electrical key antenna (outside luggage):
        GTY711346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *1 Electrical Key Transmitter Sub-assembly
        *a 0.7 to 1.0 m (2.30 to 3.28 ft.)

        When the electrical key transmitter sub-assembly is brought within 0.7 to 1 m (2.30 to 3.28 ft.) of the electrical key antenna (outside luggage), check that the wireless door lock buzzer sounds.

        OK

        Wireless door lock buzzer sounds.

        RESULT

        Result Proceed to
        All diagnostic mode inspections fail A
        Some diagnostic mode inspections fail (door) B
        Some diagnostic mode inspections fail (interior) C
        Some diagnostic mode inspections fail (luggage compartment door) D
        All diagnostic mode inspections are normal E

    Result:

    B

    GO TO OTHER PROBLEM (PROCEED TO PROBLEM SYMPTOMS TABLE FOR EACH DOOR). Refer to  PROBLEM SYMPTOMS TABLE [03/2017 - ]

    Result:

    C

    GO TO OTHER PROBLEM (PROCEED TO ROOM OSCILLATOR DOES NOT RECOGNIZE KEY). Refer to  Room Oscillator does not Recognize Key [03/2017 - 12/2017]  Refer to  Room Oscillator does not Recognize Key [12/2017 - ]

    Result:

    D

    GO TO OTHER PROBLEM (BACK DOOR ENTRY LOCK AND UNLOCK FUNCTIONS DO NOT OPERATE). Refer to  PROBLEM SYMPTOMS TABLE [03/2017 - ]

    Result:

    E

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [03/2017 - ]

    Result:

    A

    See step  5

  5. INSPECT ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY
    1. Check if there is another key available that is already registered to the vehicle.
      RESULT

      Result Proceed to
      Another registered key sub-assembly is not available A
      Another registered key sub-assembly is available B

    Result:

    B

    See step  7

    Result:

    A

    See step  6

  6. REPLACE ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY
    1. Replace the electrical key transmitter sub-assembly.
    2. Register the electrical key transmitter sub-assembly (Refer to REGISTRATION [03/2017 - 12/2017] Refer to REGISTRATION [12/2017 - ] ).

    Result:

    NEXT

    See step  7

  7. CHECK ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY (OPERATION)
    1. Check that the entry function operates normally (Refer to OPERATION CHECK [03/2017 - 12/2017] Refer to OPERATION CHECK [12/2017 - ] ).

      OK

      Entry function operates normally.

    Result:

    OK

    END (ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY WAS DEFECTIVE)

    Result:

    NG

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [03/2017 - ]
