System Diagram [03/2017 - ]

  1. DOOR BUS LINES
    GTY701603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

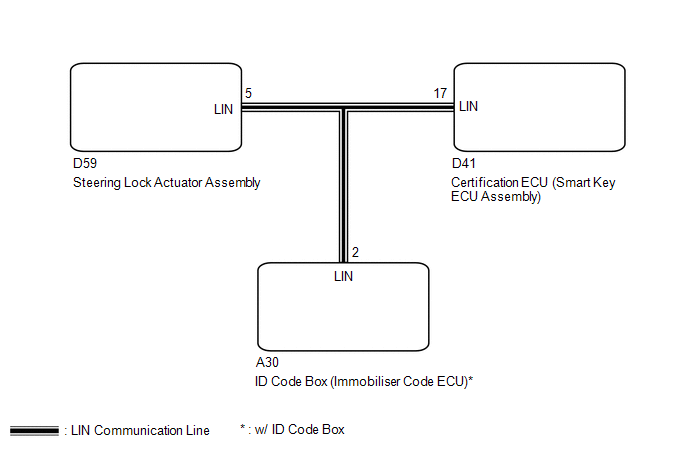

  2. CERTIFICATION BUS LINES (w/ Smart Key System)
    GTY730787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
