Data List / Active Test [03/2017 - ]

  1. DATA LIST

    HINT:

    Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

    NOTE:

    In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / (desired system) / Data List.
    5. According to the display on the Techstream, read the Data List.
      POWER SOURCE CONTROL

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Shift P Signal*1 Shift position (P) / OFF or ON OFF: Shift lever not in P
      ON: Shift lever in P      		 Use this item to determine if the shift position switch is malfunctioning.
      Steering Unlock Switch State of steering unlock sensor signal output from steering lock ECU (steering lock actuator assembly) / OFF or ON OFF: Steering locked
      ON: Steering unlocked
      • When the shift lever is in P*1 and the engine switch is off, if any door is opened or closed, the steering is locked.
      • When the key is inside the vehicle and the engine switch is turned on (ACC) or on (IG), the steering unlocks.
      • The engine cannot be started when the steering unlock signal is off.
      Stop Light Switch1*1 State of brake pedal / OFF or ON OFF: Brake pedal released
      ON: Brake pedal depressed
      • Use this item to determine whether the stop light switch is malfunctioning.
      • The engine cannot be started when this item is "OFF".
      • When this item is malfunctioning, the engine can be started by pressing and holding the engine switch for a certain period of time.
      Start Switch1 Condition of engine switch contact 1 / OFF or ON OFF: Engine switch not pressed
      ON: Engine switch pressed
      • If the engine switch is pressed for a short time, the display may not change.
      • Use this item to determine whether the engine switch input signal is malfunctioning.
      Start Switch2 Condition of engine switch contact 2 / OFF or ON OFF: Engine switch not pressed
      ON: Engine switch pressed
      • Backup for engine switch 1. However, when the engine switch is pressed and held, the control functions only when both engine switch 1 and 2 are normal.
      • Behaves the same way as engine switch 1.
      Neutral SW/ Clutch SW*1 Shift position (P, N) / OFF or ON OFF: Shift lever not in P or N
      ON: Shift lever in P or N
      • Use this item to help determine if the park/neutral position switch is malfunctioning.
      • The engine cannot be started when this item is "OFF".
      Neutral SW/ Clutch SW*2 State of clutch pedal / OFF or ON OFF: clutch pedal released
      ON: clutch pedal depressed
      • Use this item to help determine if the clutch position switch is malfunctioning.
      • The engine cannot be started when this item is "OFF".
      Latch Circuit Condition of IG related backup circuit (IG hold circuit) / OFF or ON OFF: Engine switch off
      ON: Engine switch on (IG)
      • Displays in almost the same manner as the IG1 and IG2 relays.
      • When the engine switch is on (ACC), OFF is displayed.
      IG1 Relay Monitor(Outside) IG1 relay coil voltage monitor status / OFF or ON OFF: IG1 relay off
      ON: IG1 relay on
      • Use this item to determine whether the IG1 relay is malfunctioning.
      • When the engine switch is on (ACC), OFF is displayed.
      IG1 Relay Monitor(Inside) IG1 relay activation / OFF or ON OFF: IG1 relay off
      ON: IG1 relay on
      • Use this item to determine whether the IG1 relay is malfunctioning.
      • When the engine switch is on (ACC), OFF is displayed.
      IG2 Relay Monitor(Outside) IG2 relay coil voltage monitor status / OFF or ON OFF: IG2 relay off
      ON: IG2 relay on
      • Use this item to determine whether the IG2 relay is malfunctioning.
      • When the engine switch is on (ACC), OFF is displayed.
      IG2 Relay Monitor(Inside) IG2 relay activation / OFF or ON OFF: IG2 relay off
      ON: IG2 relay on
      • Use this item to determine whether the IG2 relay is malfunctioning.
      • When the engine switch is on (ACC), OFF is displayed.
      Starter Request Signal Condition of engine start command signal / OFF or ON OFF: Engine switch released after approximately 1 second elapses
      ON: Engine switch pressed and held while carrying electrical key transmitter sub-assembly with shift lever in P*1 and brake pedal*1 or clutch pedal*2 depressed
      • When the engine cannot be started due to a start request signal malfunction, OFF is displayed.
      • When the engine switch is pressed, the duration of time that ON is displayed will be extremely short. As such, the engine switch needs to be pressed and held for a certain amount of time.
      ACC Relay Monitor ACC relay activation / OFF or ON OFF: ACC relay off
      ON: ACC relay on
      • When the engine switch is on (IG), ON is displayed.
      • While the engine is cranking, OFF is displayed.
      ACC Relay Cut Signal ACC relay cut signal / OFF or ON OFF: ACC relay on
      ON: ACC relay off      		 -
      Engine Condition Condition of engine / Stop or Run Run: Engine running
      Stop: Engine stopped      		 -
      Vehicle Speed Signal Vehicle moving or stationary / Stop or Run Run: Vehicle moving at 5 km/h (3 mph) or more
      Stop: Vehicle stopped      		 -
      Power Supply Condition State of power supply / All OFF, IG1 ON or ACC ON, IG2 ON, ST ON, All OFF: Engine switch off (ACC and IG)
      ACC ON: Engine switch on (ACC)
      IG1 ON: Engine switch on (IG) (IG1 relay on)
      IG2 ON: Engine switch on (IG) (IG2 relay on)
      ST ON: Sending engine start request signal      		 Since IG1 ON and IG2 ON turn on at approximately the same time, IG1 ON may not be displayed (IG1 ON turns on for a very short time).
      Powertrain Type Vehicle identification / HV-AT, Cnv-MT, Cnv-AT, Cnv-MMT, S&S-MT, S&S-AT, S&S-MMT Cnv-MT: Conventional M/T (M/T vehicle not equipped with hybrid system)
      Cnv-AT: Conventional CVT (CVT vehicle not equipped with hybrid system)
      Cnv-MMT: Conventional MMT (MMT vehicle not equipped with hybrid system)
      S&S-MT: Stop and start M/T (M/T vehicle not equipped with hybrid system)
      S&S-AT: Stop and start CVT (CVT vehicle not equipped with hybrid system)      		 -
      IG1 Circuit IG1 relay coil circuit malfunction / OK or NG OK: Circuit normal
      NG: Circuit malfunctioning
      • Use this item when determining whether the IG1 relay is malfunctioning.
      • When the engine cannot be started due to an IG1 relay malfunction, OFF is displayed.
      IG2 Circuit IG2 relay coil circuit malfunction / OK or NG OK: Circuit normal
      NG: Circuit malfunctioning
      • Use this item when determining whether the IG2 relay is malfunctioning.
      • When the engine cannot be started due to an IG2 relay malfunction, NG is displayed.
      Starter SW Sig Mismatch Engine switch signal 1 and 2 do not match / No or Yes No: Switch normal
      Yes: Switch malfunctioning (engine switch signal 1 and 2 do not match)      		 The engine can be started even if the result is Yes. However, emergency engine off while driving by pressing and holding the engine switch and, when the brakes are malfunctioning, emergency engine starting by pressing and holding the engine switch cannot be performed.
      Park Signal Mismatch*1 Shift position (P) signal malfunction / No or Yes No: Signal normal
      Yes: Signal malfunction (CAN communication and direct line signal do not match)      		 Even when Yes is displayed, it is still possible to turn the engine switch off (the power source mode will not be stuck in on (ACC) or on (IG)).
      Str Lock/Unlock Wait T-Out Steering lock or unlock malfunction / No or Yes No: Lock and unlock normal
      Yes: Lock or unlock malfunction (e.g. steering lock is stuck etc.)      		 When the engine cannot be started due to a steering lock or unlock malfunction, Yes is displayed.
      Key Certif Wait T-Out Key verification malfunction / No or Yes No: Verification normal
      Yes: Verification error (detected due to the electrical key transmitter sub-assembly ID code and the ID code stored in the certification ECU (smart key ECU assembly) not matching)      		 When the engine cannot be started due to a key verification error, Yes is displayed.
      Number of Diagnosis Code Number of DTCs / 0 to 255 - -
      • *1: for Automatic Transmission
      • *2: for Manual Transmission

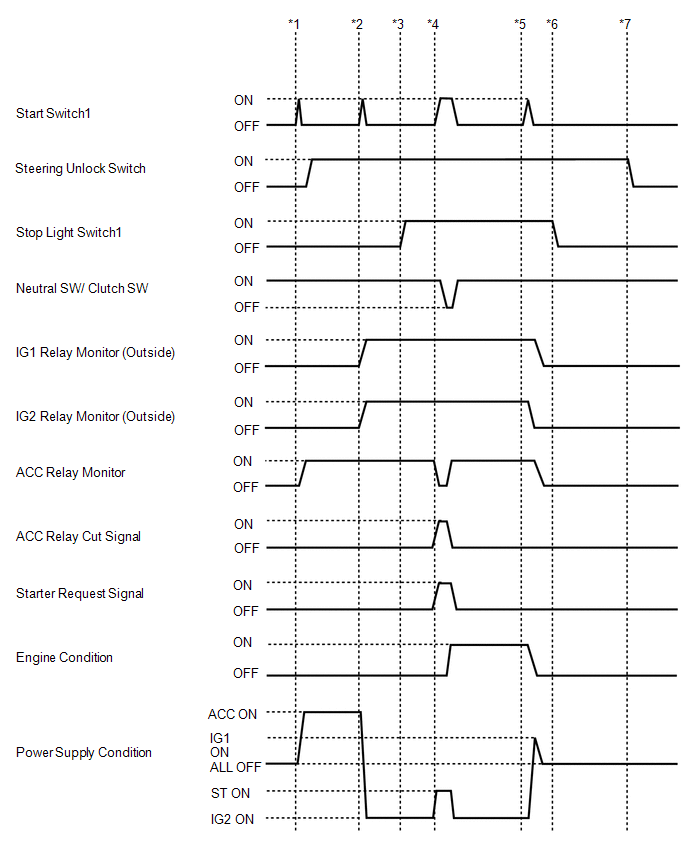

      1. Data List Display During Engine Switch Operation (for Automatic Transmission)
        GTY732446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        To check if the Data List display changes, get into the vehicle while carrying an electrical key transmitter sub-assembly and perform the following operations with the engine switch off and the shift lever in P.

        *1: Without depressing the brake pedal, press the engine switch and check that the power source mode turns on (ACC).

        *2: Without depressing the brake pedal, press the engine switch and check that the power source mode turns on (IG).

        *3: Depress the brake pedal (the stop light switch turns on).

        *4: With the brake pedal depressed, press the engine switch and check that the engine starts.

        *5: Press the engine switch and check that the power source mode turns off.

        *6: Release the brake pedal.

        *7: Open a door.

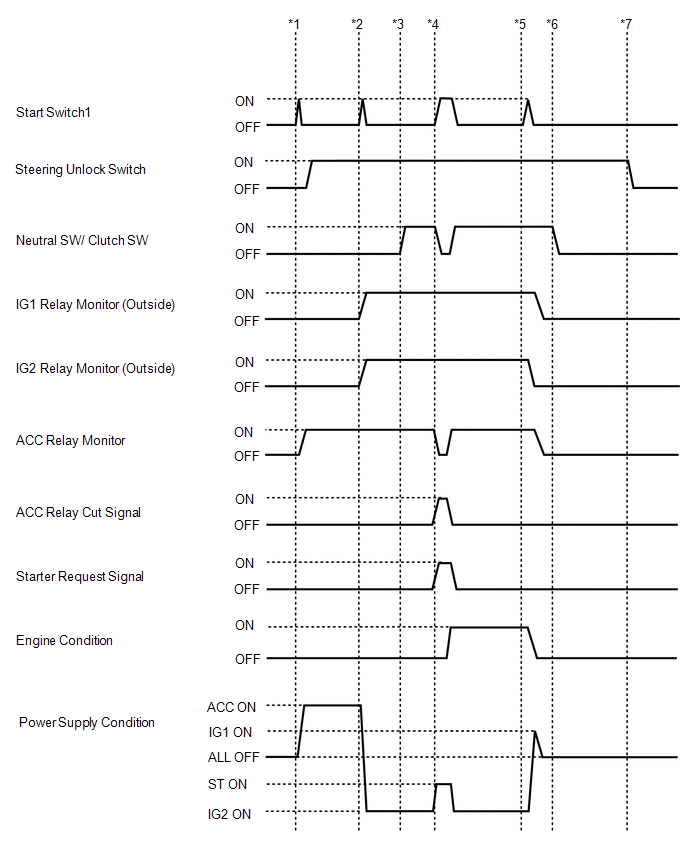

      2. Data List Display During Engine Switch Operation (for Manual Transmission)
        GTY700092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        To check if the Data List display changes, get into the vehicle while carrying an electrical key transmitter sub-assembly and perform the following operations with the engine switch off.

        *1: Without depressing the clutch pedal, press the engine switch and check that the power source mode turns on (ACC).

        *2: Without depressing the clutch pedal, press the engine switch and check that the power source mode turns on (IG).

        *3: Depress the clutch pedal (the clutch start switch turns on).

        *4: With the clutch pedal depressed, press the engine switch and check that the engine starts.

        *5: Press the engine switch and check that the power source mode turns off.

        *6: Release the clutch pedal.

        *7: Open a door.

      SMART KEY

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Ignition Switch Certification ECU (smart key ECU assembly) IG power supply input status / OFF or ON OFF: Engine switch off
      ON: Engine switch on (IG)      		 When the engine switch is on (ACC), OFF is displayed.
      #Codes Number of DTCs / 0 to 255 - -
      Immobiliser Engine immobiliser system determined by certification ECU (smart key ECU assembly) / Set or Unset Set: Engine immobiliser set (engine start prohibited) (engine switch off)
      Unset: Engine immobiliser unset (engine start permitted) (engine switch on (ACC) or on (IG))
      • When the immobiliser cannot be unset, this item can be used to determine whether the certification ECU (smart key ECU assembly) is part of the problem.
      • The engine cannot be started when this item displays "Set"
      Steering Lock Sleep Cond Steering lock ECU (steering lock actuator assembly) sleep condition / No or Yes No: Sleep not available
      Yes: Sleep available      		 -
      Steering Lock Start Cond Steering lock ECU (steering lock actuator assembly) wake up signal status / No or Yes No: Wake up signal not sent
      Yes: Wake up signal sent      		 -
      Sensor Value History of malfunction of position sensor in steering lock ECU (steering lock actuator assembly) / OK or NG(Past) OK: History of malfunction for the lock or unlock sensor in the steering lock ECU (steering lock actuator assembly) does not exist.
      NG(Past): History of both the lock and unlock sensors in the steering lock ECU (steering lock actuator assembly) being on exists (Under normal operation, neither sensor is on).      		 When this item displays "NG", the sensor inside the steering lock ECU (steering lock actuator assembly) may be malfunctioning, or there may be a mechanical malfunction.
      Power Supply Short History of signal error (short) sent from certification ECU (smart key ECU assembly) to steering lock ECU (steering lock actuator assembly) / OK or NG (Past) OK: History of motor power source short does not exist
      NG (Past): History of motor power source short exists      		 This item displays history when a malfunction exists in the circuit between the certification ECU (smart key ECU assembly) and the steering lock ECU (steering lock actuator assembly).
      Motor Driver Short History of malfunction (short) in the steering lock ECU (steering lock actuator assembly) motor circuit (DTC B2781 is stored) / OK or NG (Past) OK: History of short in the motor circuit does not exist
      NG (Past): History of short in the motor circuit exists      		 History of a malfunction in the steering lock motor circuit in the steering lock ECU (steering lock actuator assembly).
      Lock/Unlock Receive History of receiving an unlock request signal / No or Yes No: History of receiving an unlock request signal does not exist
      Yes: History of receiving an unlock request signal exists      		 -
      Lock Bar Stuck Error History of the steering wheel not being able to unlock properly when the steering lock operates for a certain amount of time / OK or NG (Past) OK: History of steering lock being stuck does not exist
      NG (Past): History of steering lock being stuck exists      		 -
      Push Start Error History of push start malfunction due to steering lock ECU (steering lock actuator assembly) / OK or NG (Past) OK: History of push start malfunction does not exist
      NG (Past): History of push start malfunction exists      		 -
      CPU Error Status of steering lock ECU (steering lock actuator assembly) /OFF or ON ON: Steering lock ECU (steering lock actuator assembly) is malfunction
      OFF: Steering lock ECU (steering lock actuator assembly) is normal      		 -
      Engine Start Request Status of engine start permission signal determined by steering lock ECU (steering lock actuator assembly) and sent to certification ECU (smart key ECU assembly) / OK or NG OK: Signal received
      NG: Signal not received
      • When this item displays "OK", the certification ECU (smart key ECU assembly) has received an unlock confirmation signal from the steering lock ECU (steering lock actuator assembly) and has permitted fuel injection and engine combustion.
      • The engine cannot be started when this item displays "NG".
      S Code Check*1 Verification result between certification ECU (smart key ECU assembly) and ID code box (immobiliser code ECU) / OK or NG OK: Verification result normal
      NG: Verification result abnormal      		 When NG is displayed:
      • S code has not been registered for the certification ECU (smart key ECU assembly) or ID code box (immobiliser code ECU).
      • Steering wheel cannot be locked.
      • Steering wheel cannot be unlocked (the engine cannot be started).
      L Code Check Verification result between ID code box (immobiliser code ECU)*1 or certification ECU (smart key ECU assembly)*2 and steering lock ECU (steering lock actuator assembly) / OK or NG OK: Verification result normal
      NG: Verification result abnormal      		 When NG is displayed:
      • L code has not been registered for the ID code box (immobiliser code ECU)*1 or certification ECU (smart key ECU assembly)*2 or steering lock ECU (steering lock actuator assembly).
      • Steering wheel cannot be locked.
      • Steering wheel cannot be unlocked (the engine cannot be started).
      Unlock Request Receive Unlock request signal received state / OK or NG
      HINT:
      • The reception state is maintained for 10 seconds.
      • When 10 seconds or more elapse after receiving the signal, the item changes to "NG".
      		 OK: Within 10 seconds of turning the engine switch on (IG) or on (ACC), or of an engine start operation being performed
      NG: Engine switch on (IG) or on (ACC), or engine start operation not performed
      • The engine cannot be started when an unlock request signal cannot be received.
      • If Received (10 seconds) is not displayed even though the steering unlock conditions are met, the certification ECU (smart key ECU assembly) may be malfunctioning.
      Lock Request Receive Lock request signal received state / OK or NG
      HINT:
      • The reception state is maintained for 10 seconds.
      • When 10 seconds or more elapse after receiving the signal, the item changes to "NG".
      		 OK: Lock request signal received for 10 sec. of any of the doors being opened with shift lever in P and engine switch off.
      NG: Except above      		 If Received (10 s) is not displayed even though the steering lock conditions are met, the certification ECU (smart key ECU assembly) may be malfunctioning.
      S Code Check(Past)*1 Verification result between certification ECU (smart key ECU assembly) and ID code box (immobiliser code ECU) (Past) / OK or NG(Past) OK: History of abnormal verification result does not exist
      NG(Past): History of abnormal verification result exists      		 -
      L Code Check(Past) Verification result history between the ID code box (immobiliser code ECU)*1 or certification ECU (smart key ECU assembly)*2 and steering lock ECU (steering lock actuator assembly) / OK or NG(Past) OK: History of abnormal verification result does not exist
      NG(Past): History of abnormal verification result exists      		 -
      • *1: w/ ID Code Box
      • *2: w/o ID Code Box

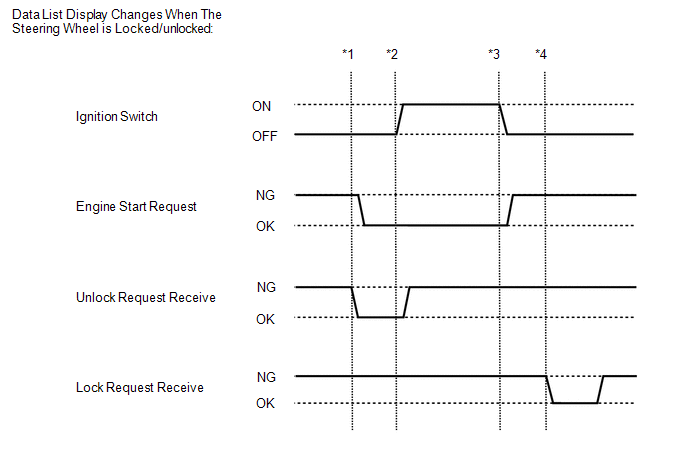

      GTY698659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      To check if the Data List display changes, get into the vehicle while carrying an electrical key transmitter sub-assembly and perform the following operations with the engine switch off and the shift lever in P.

      *1: Without depressing the brake pedal*5 or clutch pedal*6, press the engine switch and check that the power source mode turns on (ACC).

      *2: Without depressing the brake pedal*5 or clutch pedal*6, press the engine switch and check that the power source mode turns on (IG).

      *3: Press the engine switch and check that the power source mode turns off.

      *4: Release the brake pedal*5 or clutch pedal*6, open the driver side door and check that the steering locks.

      • *5: for Automatic Transmission
      • *6: for Manual Transmission
      ENGINE

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Engine Speed Engine speed / 0 to 16383 r/min Fluctuates in accordance with engine speed -
      Starter Signal Starter request signal monitor / OFF or ON OFF: Starting control switch off
      ON: Starting control switch on      		 When malfunctioning, the engine will not crank.
      Starter Control Starter activation request / OFF or ON OFF: Starter activation not requested
      ON: Starter activation requested      		 When malfunctioning, the engine will not crank.
      Shift SW Status (P Range)*1 Condition of park/neutral position switch / OFF or ON OFF: Shift lever not in P
      ON: Shift lever in P      		 When malfunctioning, the engine will not crank.
      Shift SW Status (N Range)*1 Condition of park/neutral position switch / OFF or ON OFF: Shift lever not in N
      ON: Shift lever in N      		 When malfunctioning, the engine will not crank.
      Starter Relay Starter relay voltage monitor / OFF or ON OFF: ST relay off
      ON: ST relay on      		 OFF is displayed when the engine cannot crank.
      ST1 Stop light switch assembly status / OFF or ON OFF: Brake pedal released
      ON: Brake pedal depressed      		 -
      Ignition Status IG2 status / OFF or ON OFF: IG2 relay off
      ON: IG2 relay on      		 -
      # Codes (Include History) Number of DTCs / 0 to 255 - -
      • *1: for Automatic Transmission

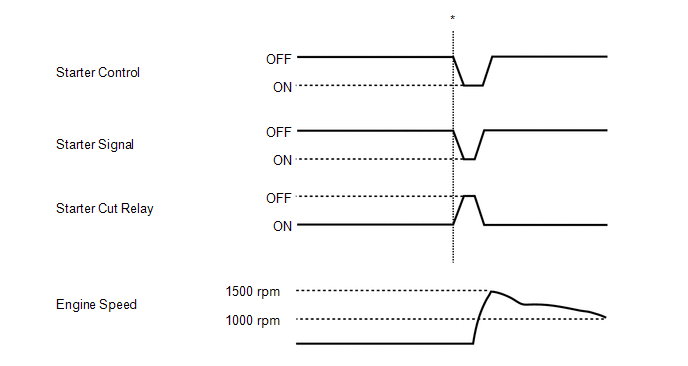

      GTY705874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      *: With the engine switch on (IG), the shift lever in P*1 or N*1and the brake pedal*1 or clutch pedal*2 depressed, press the engine switch and check that the engine starts.

      • *1: for Automatic Transmission
      • *2: for Manual Transmission
    6. Enter the following menus: Chassis / ABS/VSC/TRAC / Data List.
      ABS/VSC/TRAC

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Vehicle Speed Vehicle speed/Min.: 0 km/h (0 mph), Max.: 326.4 km/h (202 mph) Almost same as actual vehicle speed -
  2. ACTIVE TEST

    HINT:

    Using the Techstream to perform Active Tests allows relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.

    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / (desired system) / Active Test.
    5. According to the display on the Techstream, perform the Active Test.
    POWER SOURCE CONTROL

    Tester Display Test Part Control Range Diagnostic Note
    P Supply for Steering Lock Certification ECU (smart key ECU assembly) OFF/ON
    HINT:
    OFF: Power is not supplied.
    ON: Power is supplied.    		 When performing this Active Test, make sure the following condition is met:
    The engine switch is on (IG).
    SMART KEY

    Tester Display Test Part Control Range Diagnostic Note
    Power/Engine SW Light Engine switch light OFF/ON When performing this Active Test, make sure the following condition is met:
    The engine switch illumination is off (15 seconds or more have elapsed since it turned from on to off) and the engine switch is on (ACC) or on (IG), or the engine is running.
scientia non olet · About LEMON Manuals
