System Diagram [06/2016 - ]

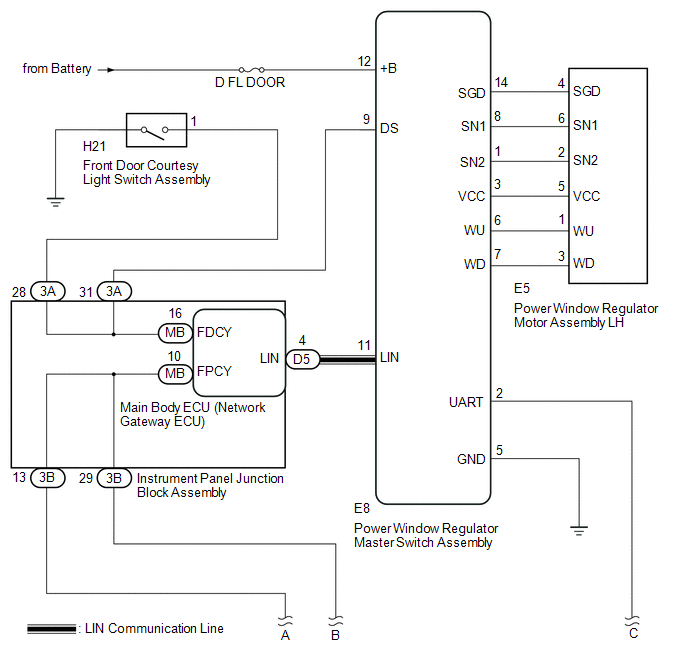

GTY711532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

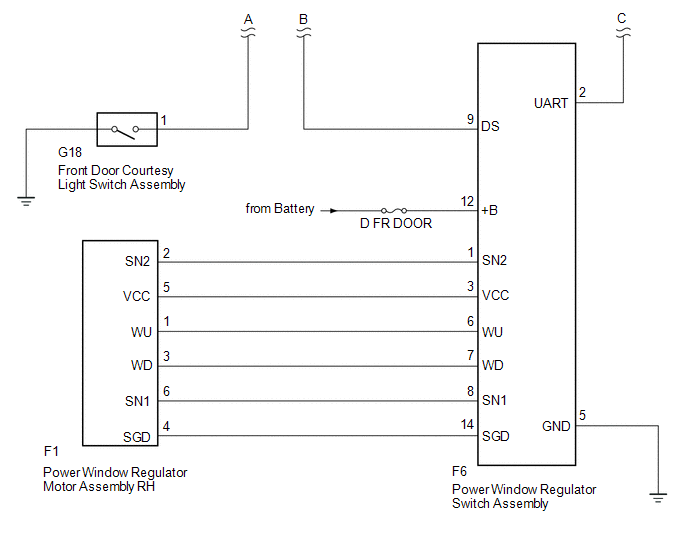

GTY727359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU Receiving ECU Signal Communication Method
Power window regulator master switch assembly Power window regulator motor assembly Power window auto up and down signal Local communication
Power window regulator switch assembly Power window remote up and down signal Local communication
Power window regulator switch assembly Power window regulator motor assembly Power window auto up and down signal Local communication
Main Body ECU (Network Gateway ECU) Power window regulator master switch assembly Power window operation permission signal LIN
