DTC B2799-86: Engine Immobiliser System Signal (Some Circuit Quantity, Reported via Serial Data) Invalid [04/2018 - 08/2020]: Procedure

1. Register the ECU communication ID code.

   Refer to REGISTRATION [04/2018 - 08/2020]

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  2

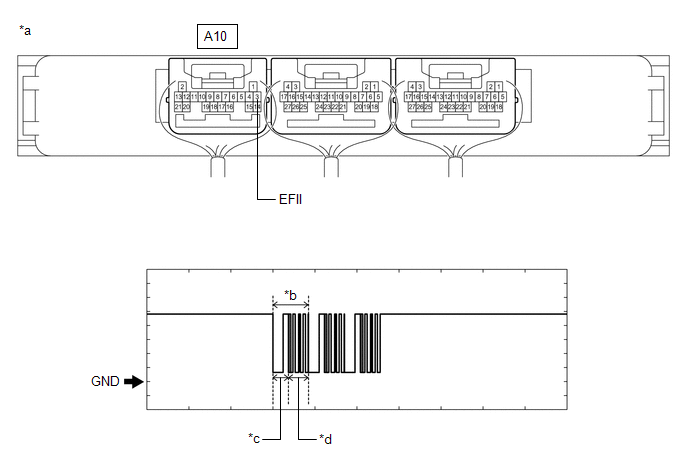

1. Using an oscilloscope, check the waveform.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component with harness connected (Certification ECU (Smart Key ECU Assembly))	*b	Waveform
   *c	Approximately 160 ms.	*d	Approximately 270 ms.

   OK

   Tester Connection	Condition	Tool Setting	Specified Condition
   A10-3 (EFII) - Body ground	Engine switch on (IG)	2 V/DIV., 500 ms./DIV.	Pulse generation (See waveform)

   Result

   Result	Proceed to
   Normal waveform	A
   Terminal EFII stuck low (2.4 V or less)	B
   Waveform not output, or has abnormal wavelength or shape	C

Result:

B

See step  6

Result:

C

REPLACE ECM. Refer to  REMOVAL [04/2018 - 08/2021]

Result:

A

See step  3

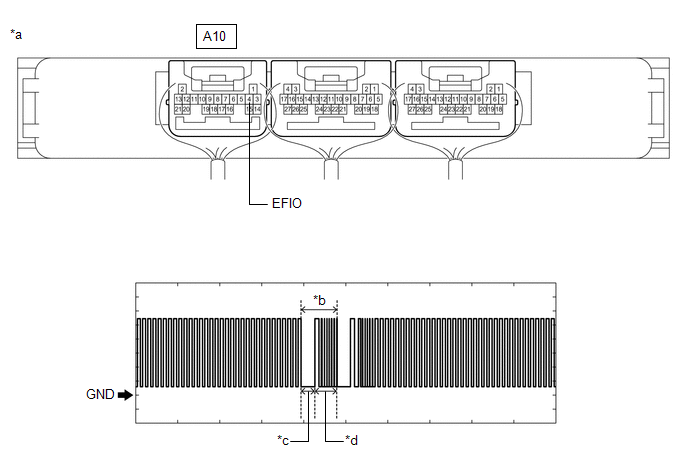

1. Using an oscilloscope, check the waveform.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component with harness connected (Certification ECU (Smart Key ECU Assembly))	*b	Waveform
   *c	Approximately 160 ms.	*d	Approximately 270 ms.

   OK

   Tester Connection	Condition	Tool Setting	Specified Condition
   A10-4 (EFIO) - Body ground	Engine switch turned on (IG) using registered electrical key transmitter sub-assembly	2 V/DIV., 500 ms./DIV.	Pulse generation (See waveform)

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [04/2018 - 08/2021]

Result:

OK

See step  4

1. Register the ECU communication ID code.

   Refer to REGISTRATION [04/2018 - 08/2020]

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  5

1. Using an electrical key transmitter sub-assembly which is registered to the vehicle, turn the engine switch on (IG).
2. Check that the engine starts 5 seconds after the engine switch turned on (IG).

   OK

   Engine starts normally.

   Result

   Proceed to
   OK
   NG

Result:

OK

END (ECU COMMUNICATION ID HAS NOT BEEN REGISTERED)

Result:

NG

REPLACE ECM. Refer to  REMOVAL [04/2018 - 08/2021]

1. Disconnect the A18 ECM connector.
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   A18-45 (IMO) - Body ground	Engine switch turned on (IG) using registered electrical key transmitter sub-assembly	Terminal IMO stuck low (2.4 V or less)
   		Terminal IMO stuck high (12 V) or abnormal waveform

   Result

   Result	Proceed to
   Terminal IMO stuck low (2.4 V or less)	A
   Terminal IMO stuck high (12 V) or abnormal waveform	B

Result:

B

REPLACE ECM. Refer to  REMOVAL [04/2018 - 08/2021]

Result:

A

See step  7

1. Disconnect the A10 certification ECU (smart key ECU assembly) connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A10-3 (EFII) - A18-45 (IMO)	Always	Below 1 Ω
   A10-3 (EFII) or A18-45 (IMO) - Other terminals and body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [04/2018 - 08/2021]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
