Engine Room Relay Block Assembly And Engine Room Junction Block Assembly Inner Circuit

Fig 1: Engine Room R/B Assembly And Engine Room J/B Assembly Relay & Inner Circuit Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
ST Relay
MG CLT Relay

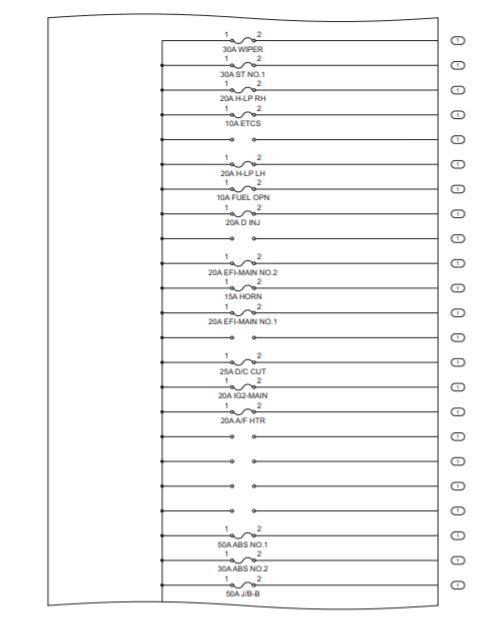

Fig 2: Engine Room R/B Assembly And Engine Room J/B Assembly Relay & Inner Circuit Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

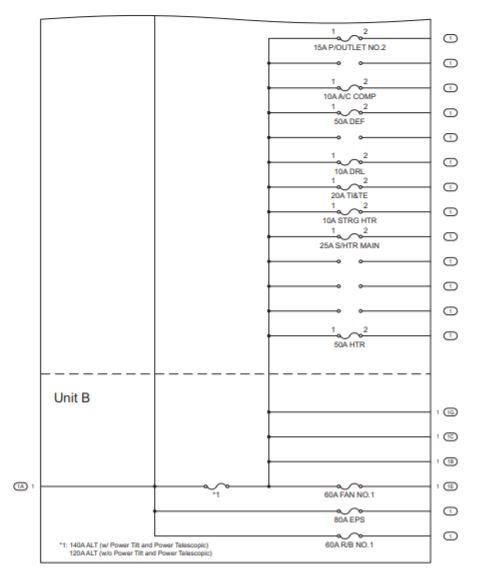

Fig 3: Engine Room R/B Assembly And Engine Room J/B Assembly Relay & Inner Circuit Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

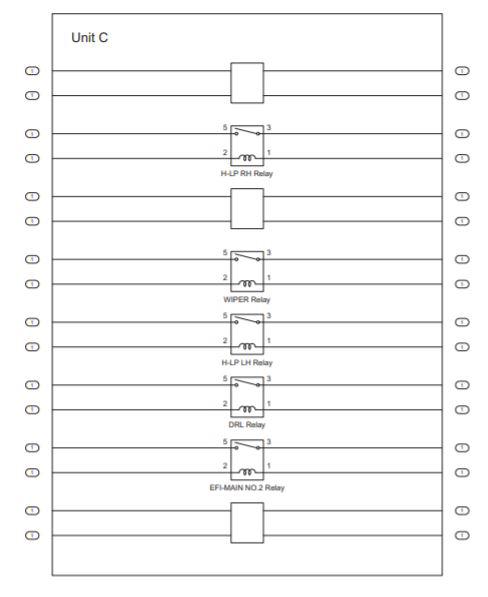

Fig 4: Engine Room R/B Assembly And Engine Room J/B Assembly Relay & Inner Circuit Diagram (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
H-LP RH Relay
WIPER Relay
H-LP LH Relay
DRL Relay
EFI-MAIN NO. 2 Relay

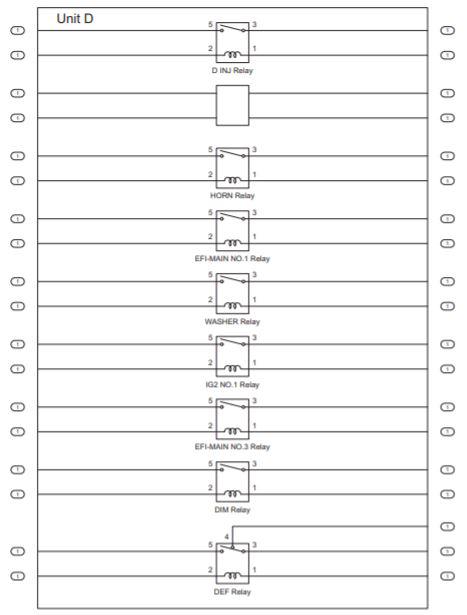

Fig 5: Engine Room R/B Assembly And Engine Room J/B Assembly Relay & Inner Circuit Diagram (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
D INJ Relay
HORN Relay
EFI-MAIN NO. 1 Relay
WASHER Relay
IG2 NO. 1 Relay
EFI-MAIN NO. 3 Relay
DIM Relay
DEF Relay
