Engine Room Relay Block Assembly And Engine Room Junction Block Assembly No. 2 Inner Circuit

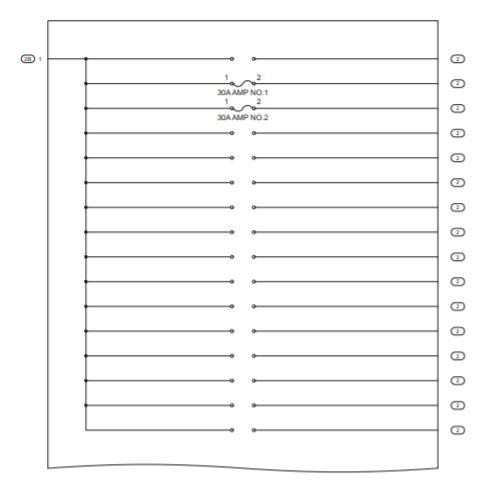

Fig 1: Engine Room R/B Assembly And Engine Room J/B Assembly No. 2 Inner Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

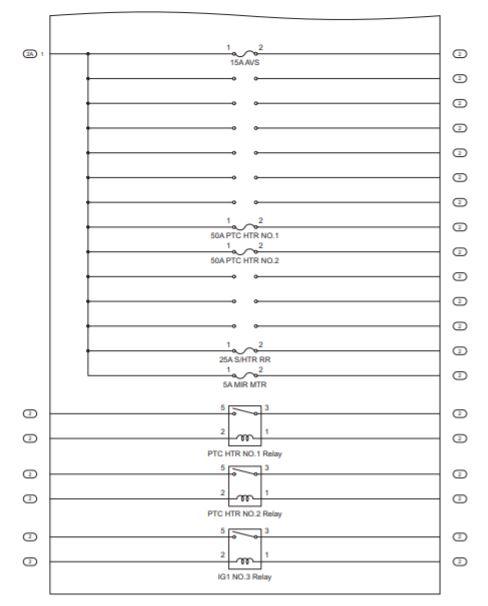

Fig 2: Engine Room R/B Assembly And Engine Room J/B Assembly No. 2 Inner Circuit Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
PTC HTR NO. 1 Relay
PTC HTR NO. 2 Relay
IG1 NO. 3 Relay
