Components [02/2017 - ]

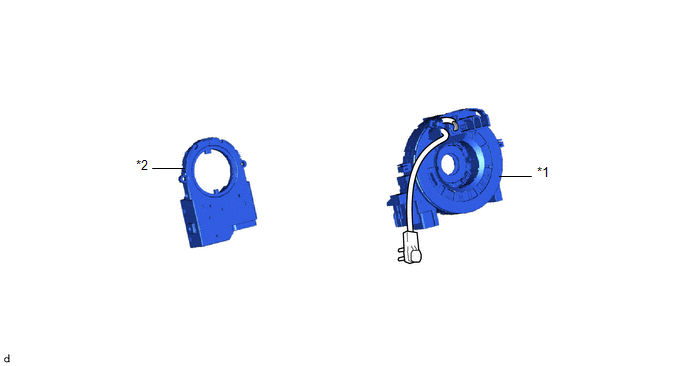

Fig 1: Steering Angle Sensor Replacement Components
GTY750737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 SPIRAL CABLE SUB-ASSEMBLY *2 STEERING SENSOR
