Components [02/2017 - ]

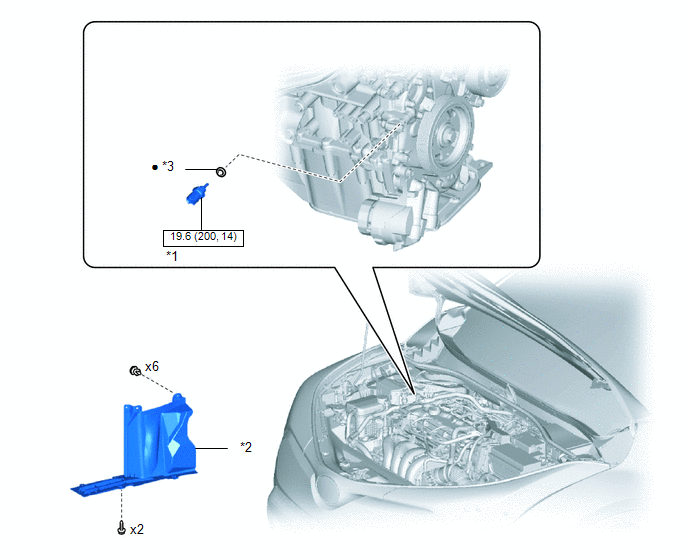

Fig 1: Engine Oil Temperature Sensor Replacement Components With Torque Specifications
GTY743008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE OIL TEMPERATURE SENSOR *2 REAR ENGINE UNDER COVER RH
*3 GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
