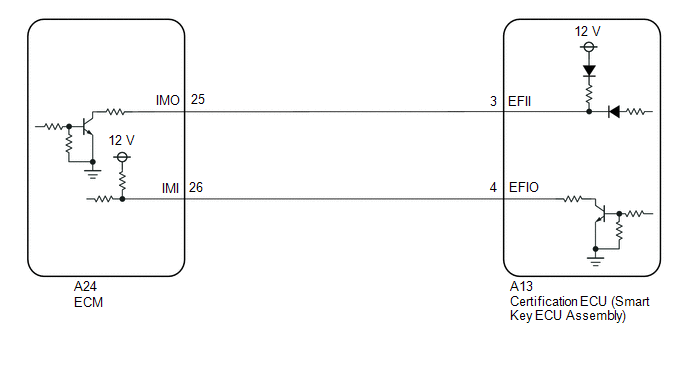

DTC B2799-86: Engine Immobiliser System Signal (Some Circuit Quantity, Reported via Serial Data) Invalid [03/2017 - 06/2017]: Wiring Diagram

GTY758432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
