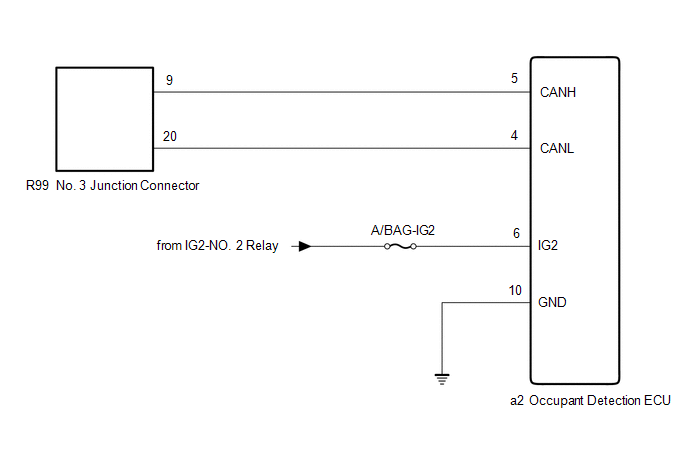

Restraints Occupant Classification System Module Communication Stop Mode [03/2017 - 06/2017]: Wiring Diagram

GTY773335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
