Restraints Occupant Classification System Module Communication Stop Mode [06/2017 - 09/2019]: Procedure

  1. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      for TMC Made A
      for TMMK Made B

    Result:

    B

    See step  4

    Result:

    A

    See step  2

  2. CHECK FOR OPEN IN CAN BUS LINES (OCCUPANT DETECTION ECU BRANCH LINE)
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Disconnect the a2 occupant detection ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

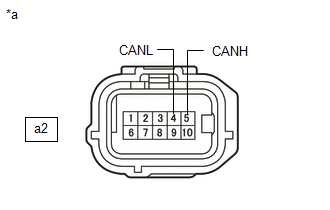

      GTY768334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Occupant Detection ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      a2-5 (CANH) - a2-4 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (OCCUPANT DETECTION ECU)

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.
      GTY768333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Occupant Detection ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      a2-10 (GND) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω
    2. Reconnect the cable to the negative (-) battery terminal.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      a2-6 (IG2) - Body ground Ignition switch ON 11 to 14 V

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE OCCUPANT DETECTION ECU. Refer to  REMOVAL [06/2017 - 09/2019]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

  4. CHECK FOR OPEN IN CAN BUS LINES (OCCUPANT DETECTION ECU BRANCH LINE)
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Disconnect the a6 occupant detection ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

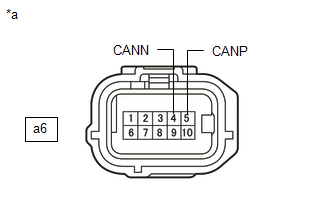

      GTY768329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Occupant Detection ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      a6-5 (CANP) - a6-4 (CANN) Cable disconnected from negative (-) battery terminal 54 to 69 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (OCCUPANT DETECTION ECU)

    Result:

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.

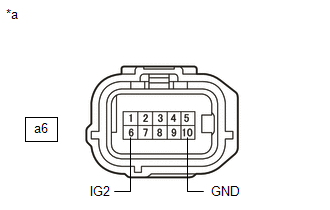

      GTY925457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Occupant Detection ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      a6-10 (GND) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω
    2. Reconnect the cable to the negative (-) battery terminal.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      a6-6 (IG2) - Body ground Ignition switch ON 11 to 14 V

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE OCCUPANT DETECTION ECU. Refer to  REMOVAL [06/2017 - 09/2019]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
