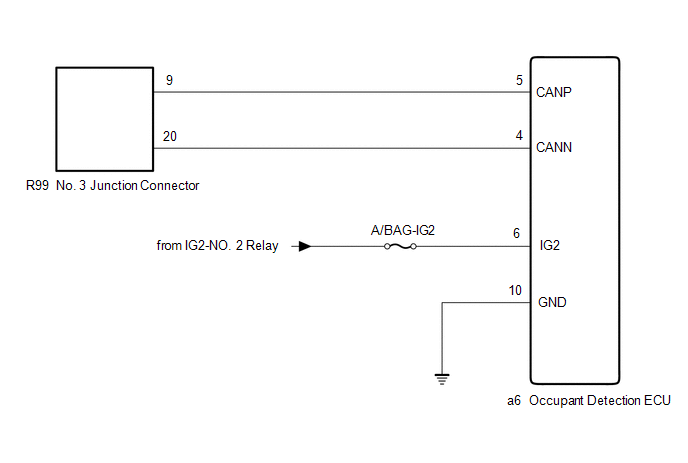

Restraints Occupant Classification System Module Communication Stop Mode [09/2019 - ]: Wiring Diagram

GTY936391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
