Power Window Control System - Diagnostic Codes & Symptom Tests (Except Hybrid)
>>
Power Window Control System
>>
Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch [03/2017 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

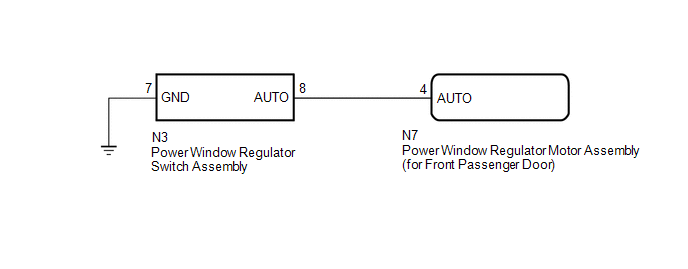

Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch [03/2017 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
