Engine Room Relay Block Assembly And Engine Room Junction Block Assembly Inner Circuit

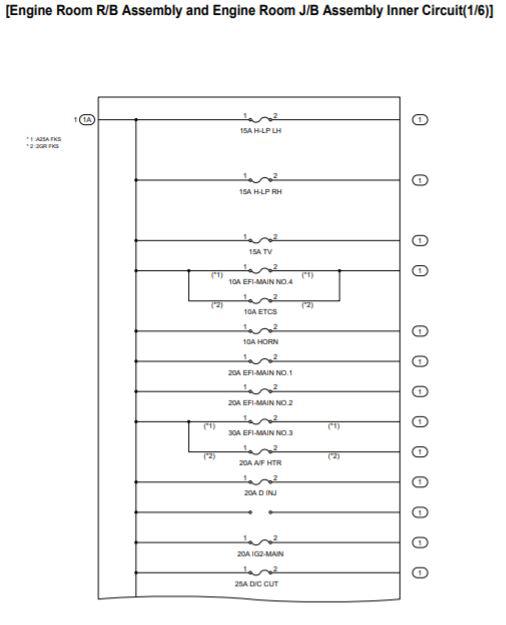

Fig 1: Engine Room R/B Assembly And Engine Room J/B Assembly Relay Inner Circuit Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

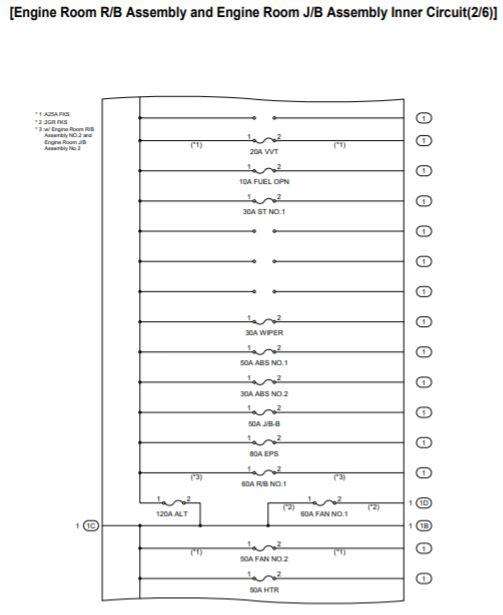

Fig 2: Engine Room R/B Assembly And Engine Room J/B Assembly Relay Inner Circuit Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

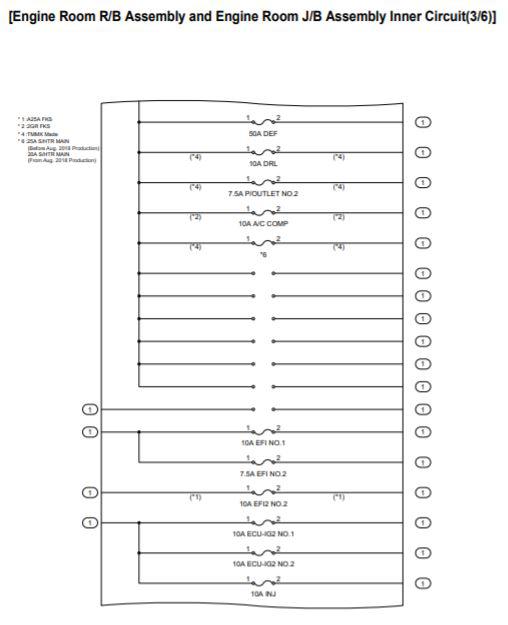

Fig 3: Engine Room R/B Assembly And Engine Room J/B Assembly Relay Inner Circuit Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

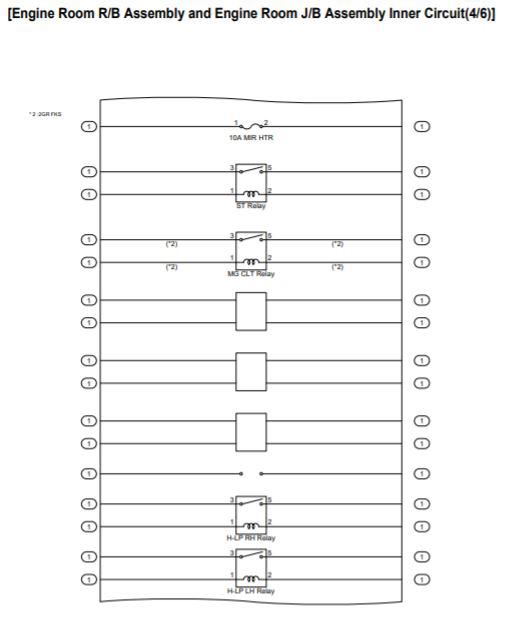

Fig 4: Engine Room R/B Assembly And Engine Room J/B Assembly Relay Inner Circuit Diagram (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
ST Relay
MG CLT Relay
H-LP RH Relay
H-LP LH Relay

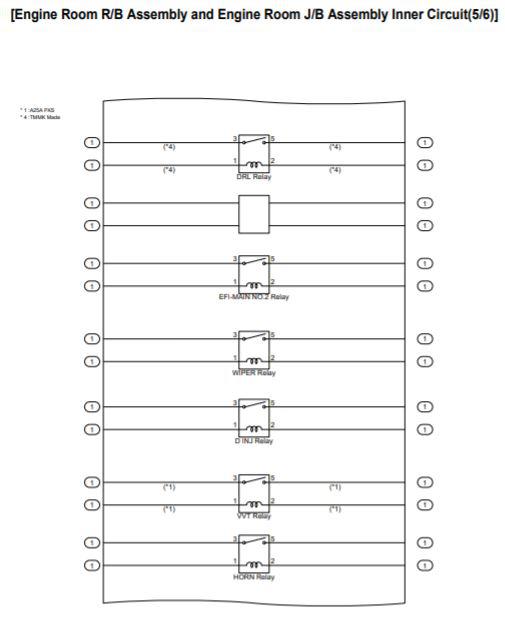

Fig 5: Engine Room R/B Assembly And Engine Room J/B Assembly Relay Inner Circuit Diagram (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
DRL Relay
EFI-MAIN NO. 2 Relay
WIPER Relay
D INJ Relay
VVT Relay
HORN Relay

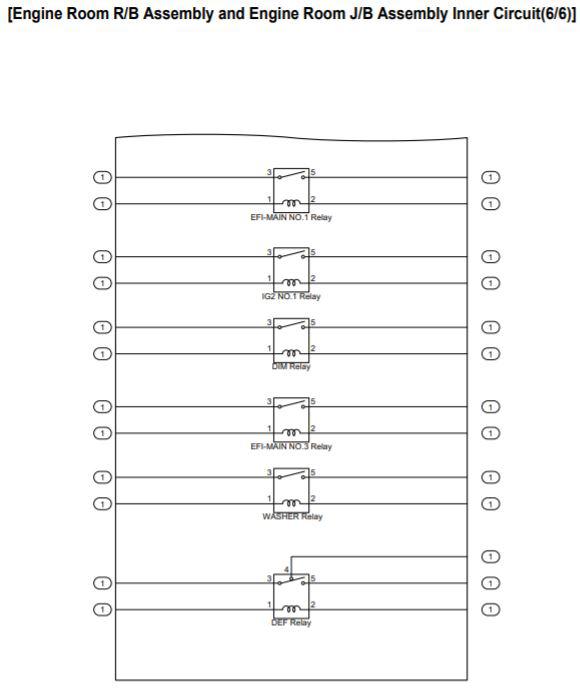

Fig 6: Engine Room R/B Assembly And Engine Room J/B Assembly Relay Inner Circuit Diagram (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
EFI-MAIN NO. 1 Relay
IG2 NO. 1 Relay
DIM Relay
EFI-MAIN NO. 3 Relay
WASHER Relay
DEF Relay
