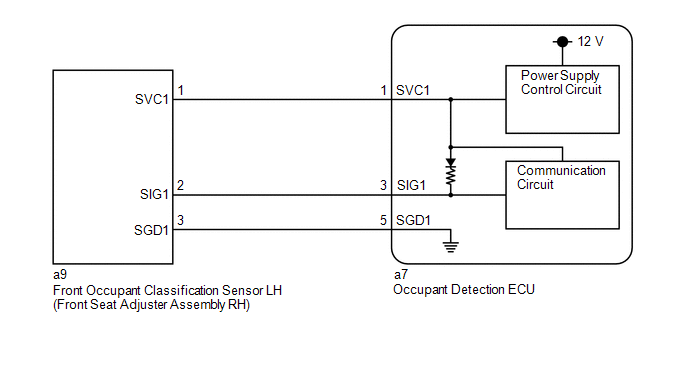

DTC B1780: Front Occupant Classification Sensor LH Circuit Malfunction [06/2017 - 09/2019]: Wiring Diagram

for TMC Made:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for TMMK Made:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
