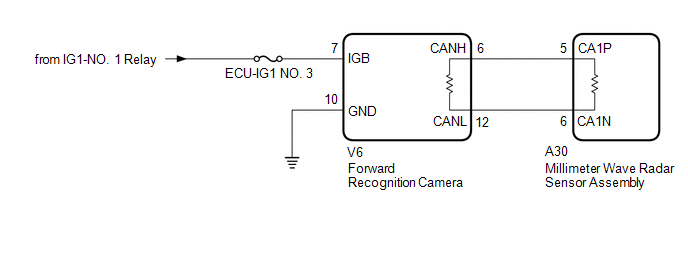

DTC U023A: Lost Communication With Image Processing Module "A" [03/2017 - 10/2020]: Wiring Diagram

GTY743866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
