Terminals Of ECM [08/2013 - 08/2016]

WARNING: This page is about a different car, the 2018 Toyota Corolla, 2017 Toyota Corolla, 2016 Toyota Corolla, 2015 Toyota Corolla, and 2014 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK ECM

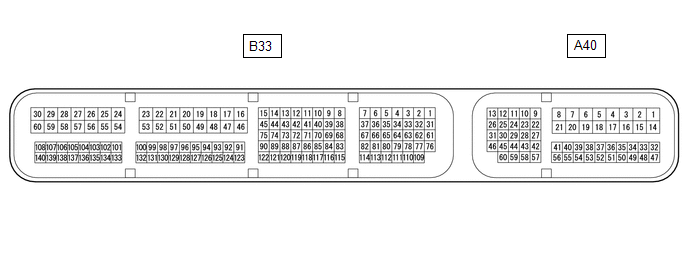

    Fig 1: Check ECM Connector End Views
    GTY440013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Terminal No. (Symbols) Wiring Color Terminal Description Condition Specified Condition
    A40-9 (STP) - B33-16 (E1) L - BR Stop light signal Ignition switch ON, Brake pedal depressed 11 to 14 V
    A40-9 (STP) - B33-16 (E1) L - BR Stop light signal Ignition switch ON, Brake pedal released Below 1 V
    A40-60 (CCS) - B33-16 (E1) SB - BR Cruise control main switch circuit Cruise control main switch (ON-OFF button) released 1 MΩ or higher
    A40-60 (CCS) - B33-16 (E1) SB - BR Cruise control main switch circuit Cruise control main switch (ON-OFF button) pushed Below 2.5 Ω
    A40-60 (CCS) - B33-16 (E1) SB - BR Cruise control main switch circuit +/RES switch ON 235 to 245 Ω
    A40-60 (CCS) - B33-16 (E1) SB - BR Cruise control main switch circuit -/SET switch ON 617 to 643 Ω
    A40-60 (CCS) - B33-16 (E1) SB - BR Cruise control main switch circuit CANCEL switch ON 1509 to 1571 Ω
    A40-10 (ST1-) - B33-16 (E1) R - BR Stop light signal Ignition switch ON, Brake pedal depressed Below 1 V
    A40-10 (ST1-) - B33-16 (E1) R - BR Stop light signal Ignition switch ON,
    Brake pedal released    		 11 to 14 V
    B33-81 (D)*1 - B33-16 (E1) GR - BR D shift position signal Ignition switch ON, Shift lever in D or S position 11 to 14 V
    B33-81 (D)*1 - B33-16 (E1) GR - BR D shift position signal Ignition switch ON, Shift lever except D or S position Below 1 V
    B33-81 (D)*2 - B33-16 (E1) GR - BR D shift position signal Ignition switch ON, Shift lever in D or M position 11 to 14 V
    B33-81 (D)*2 - B33-16 (E1) GR - BR D shift position signal Ignition switch ON, Shift lever except D or M position Below 1 V
    B33-81 (D)*3 - B33-16 (E1) GR - BR D shift position signal Ignition switch ON and shift lever in D or 3 position 11 to 14 V
    B33-81 (D)*3 - B33-16 (E1) GR - BR D shift position signal Ignition switch ON and shift lever except D or 3 position Below 1 V
    B33-81 (D)*4 - B33-16 (E1) GR - BR Clutch switch signal Ignition switch ON, Clutch pedal depressed Below 1 V
    B33-81 (D)*4 - B33-16 (E1) GR - BR Clutch switch signal Ignition switch ON, Clutch pedal released 11 to 14 V

    () *1: for CVT (w/o sport sequential shiftmatic)*2: for CVT (w/ sport sequential shiftmatic)*3: for Automatic Transaxle*4: for Manual Transaxle
