Removal [08/2013 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Corolla, 2017 Toyota Corolla, 2016 Toyota Corolla, 2015 Toyota Corolla, and 2014 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

PRECAUTION
Refer to PRECAUTION [08/2013 - 08/2016]

NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Refer to PRECAUTION [08/2013 - 08/2015] Refer to PRECAUTION [08/2015 - 08/2016]
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [08/2013 - 08/2015] Refer to INITIALIZATION [08/2015 - 08/2016]
REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
Refer to PROCEDURE - Step 7 Refer to PROCEDURE - Step 7 Refer to PROCEDURE - Step 7
REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 8 Refer to PROCEDURE - Step 8 Refer to PROCEDURE - Step 8

REMOVE NAVIGATION RECEIVER ASSEMBLY WITH BRACKET

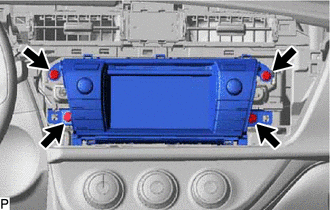

Remove the 4 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

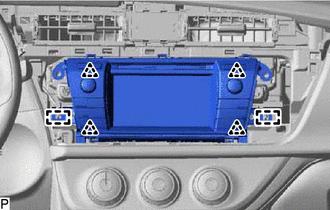

Pull the navigation receiver assembly with bracket toward the rear of the vehicle and disengage the 4 clips and 2 guides.

Disconnect each connector and remove the navigation receiver assembly with bracket.

REMOVE STEREO COMPONENT TUNER ASSEMBLY WITH BRACKET (w/ Satellite Radio)
Refer to PROCEDURE - Step 4 Refer to PROCEDURE - Step 5
REMOVE NO. 1 RADIO BRACKET

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

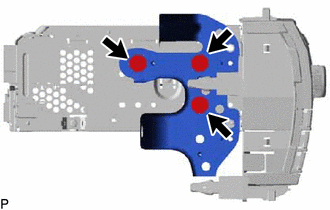

1. Remove the 3 screws and No. 1 radio bracket.
REMOVE NO. 2 RADIO BRACKET

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

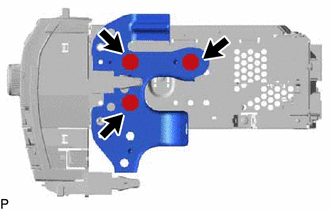

1. Remove the 3 screws and No. 2 radio bracket.
REMOVE NAVIGATION RECEIVER ASSEMBLY
