MIL Circuit [08/2013 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

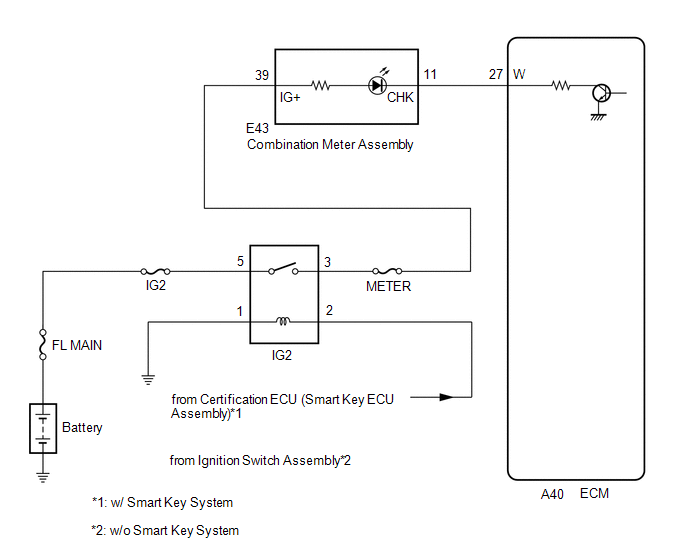

GTY451802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
